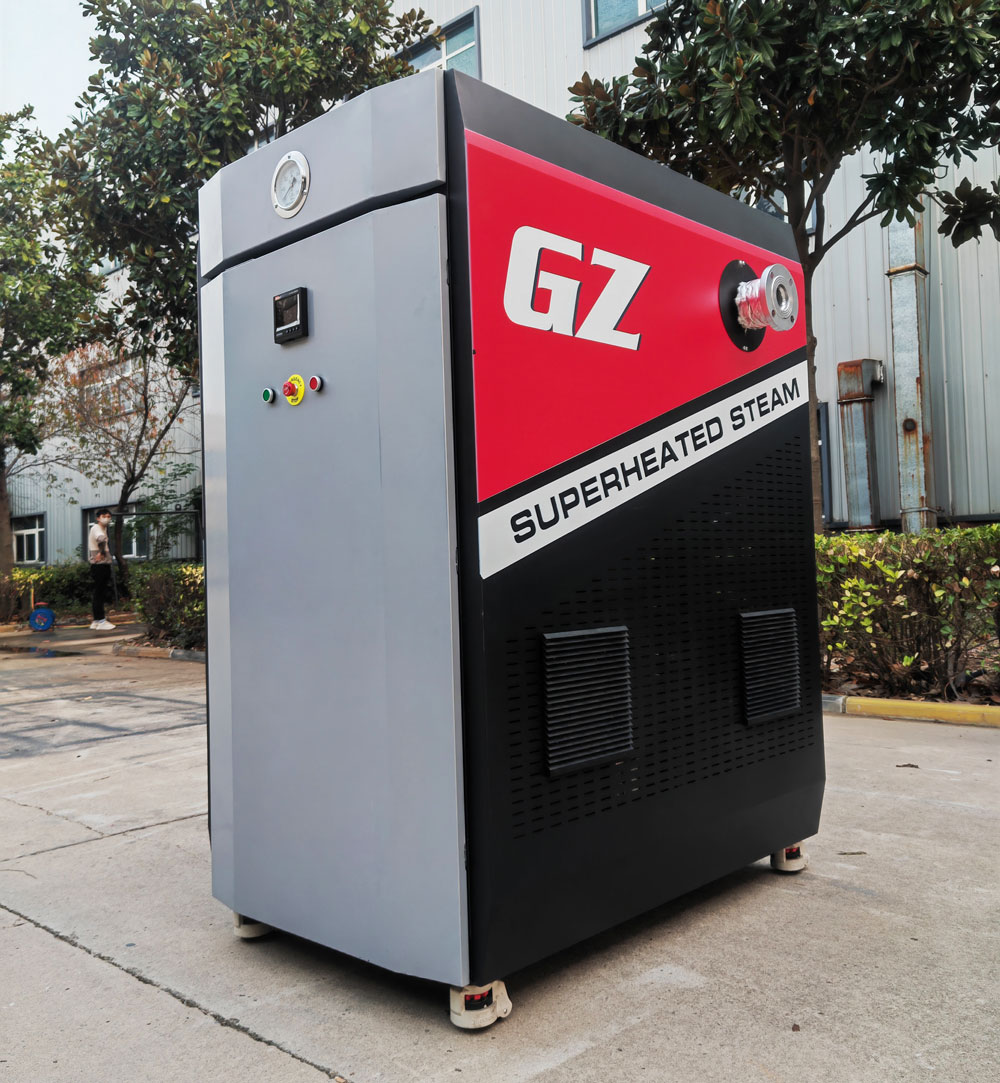

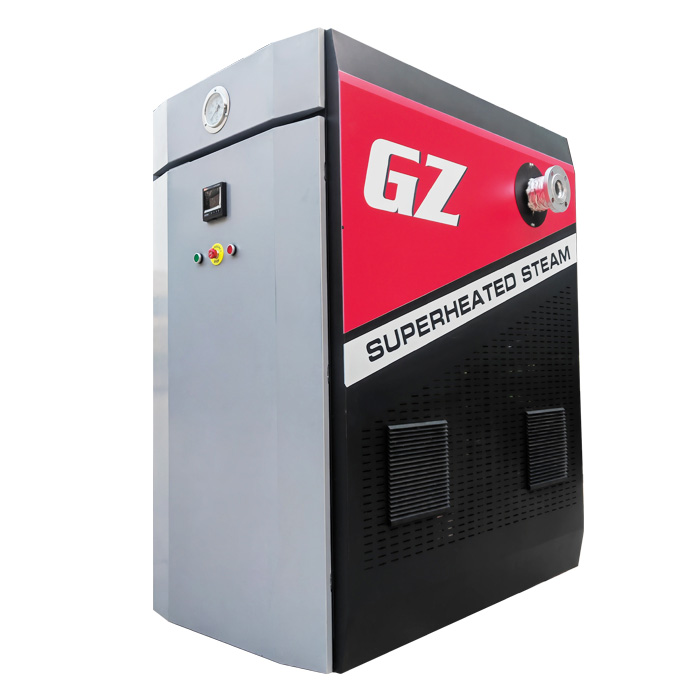

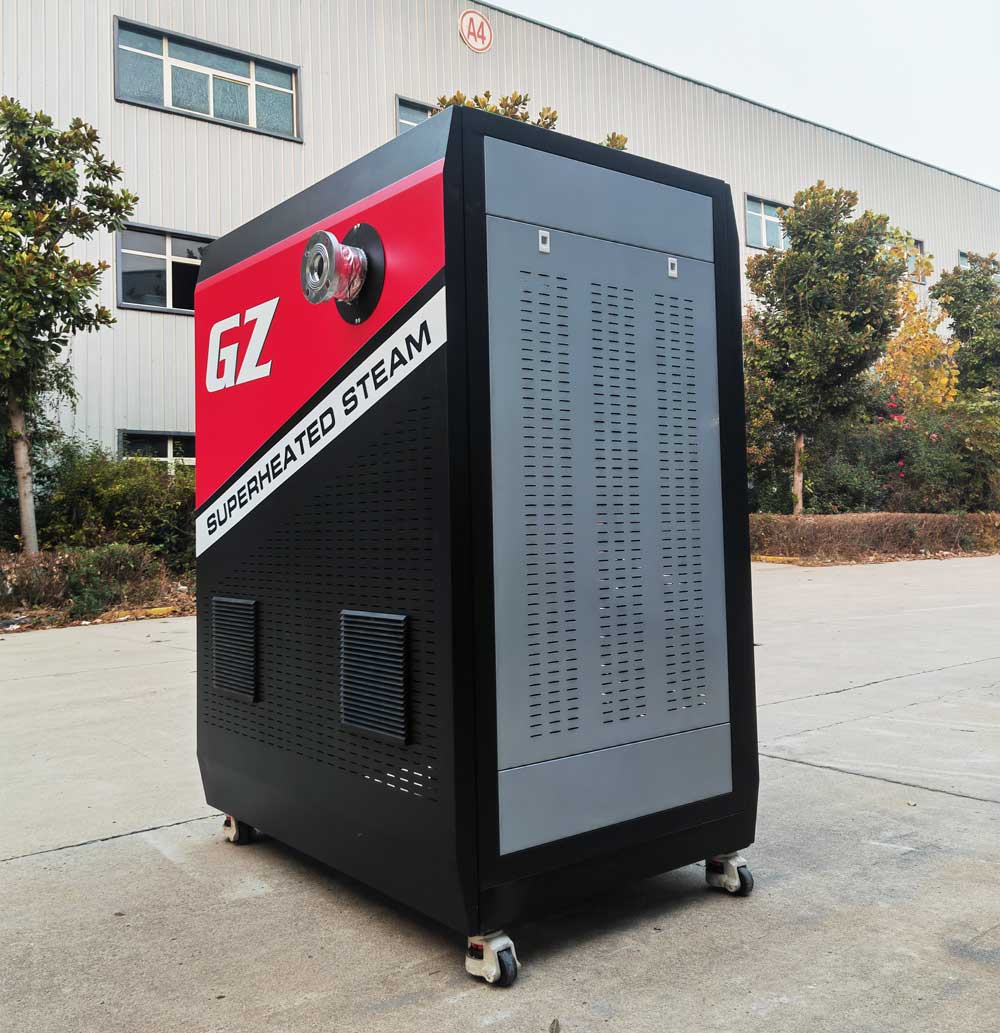

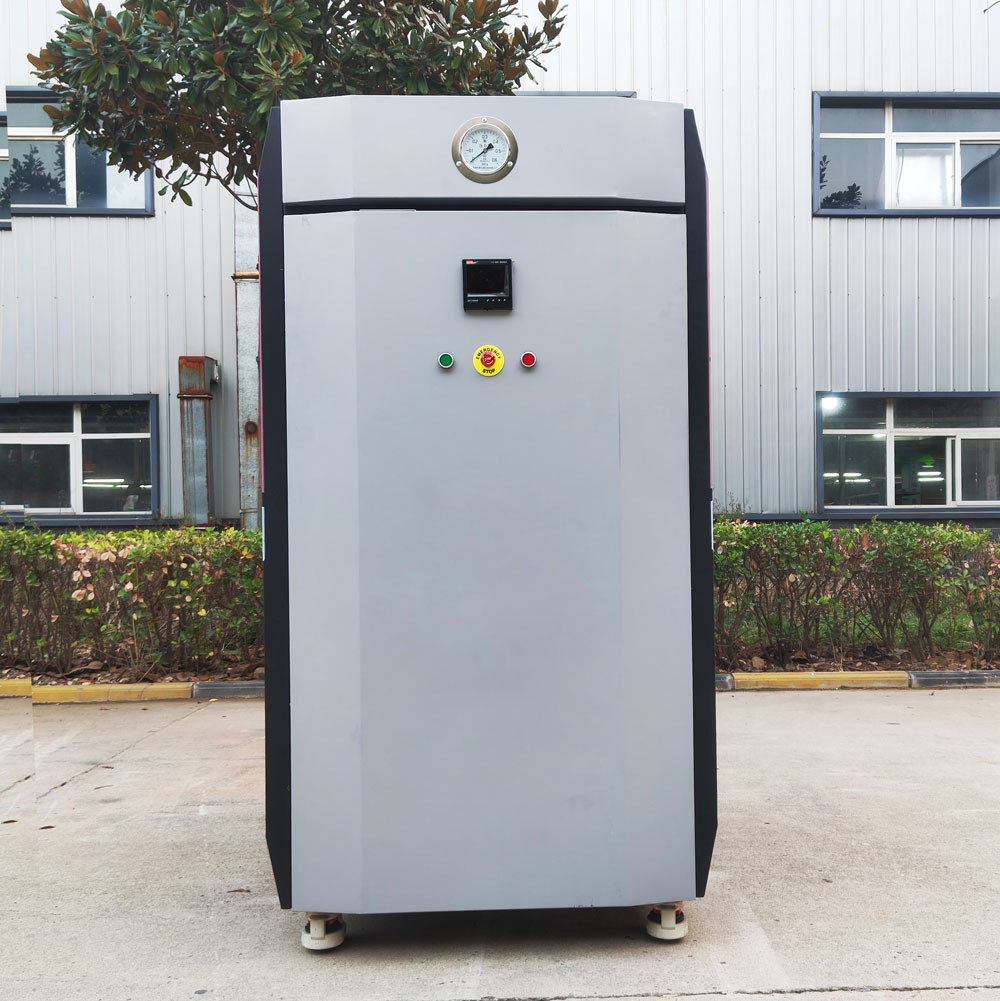

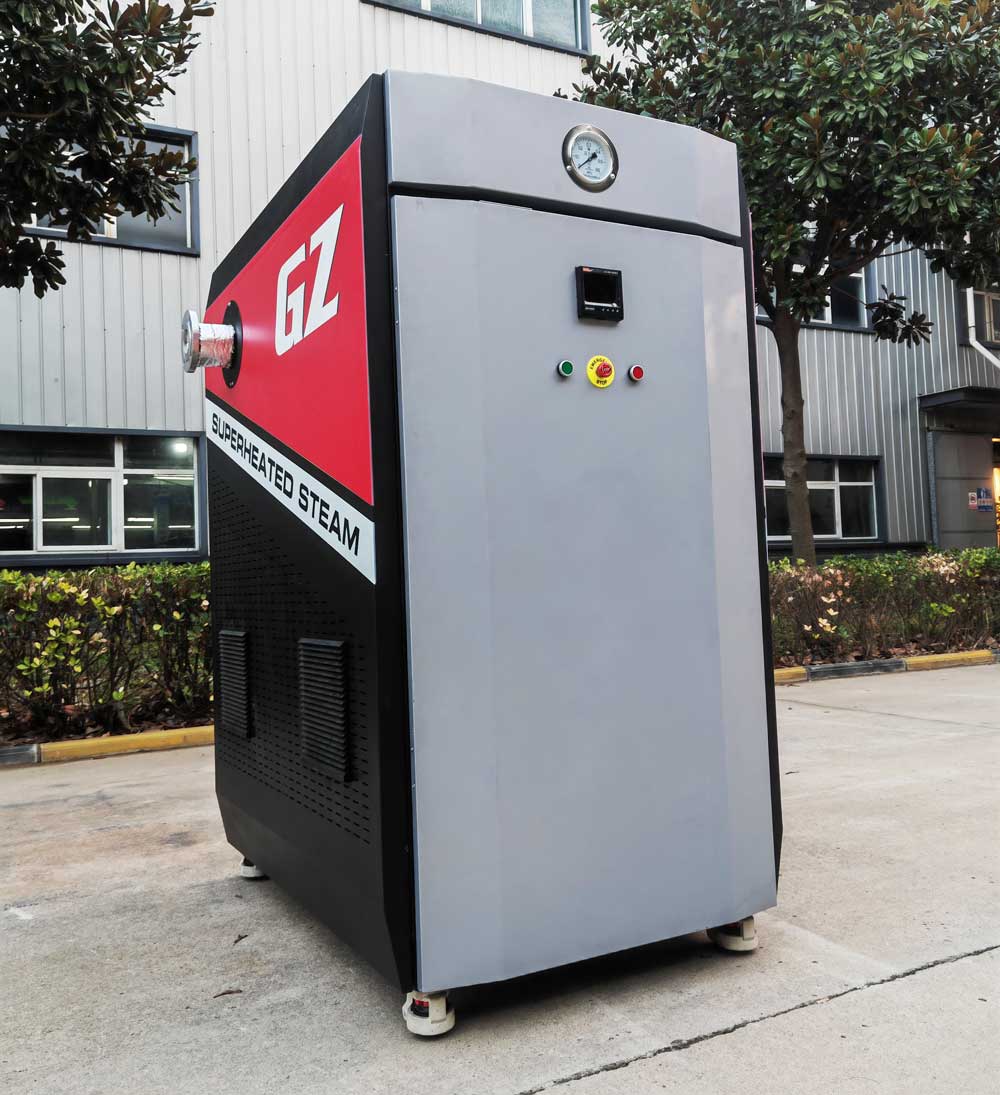

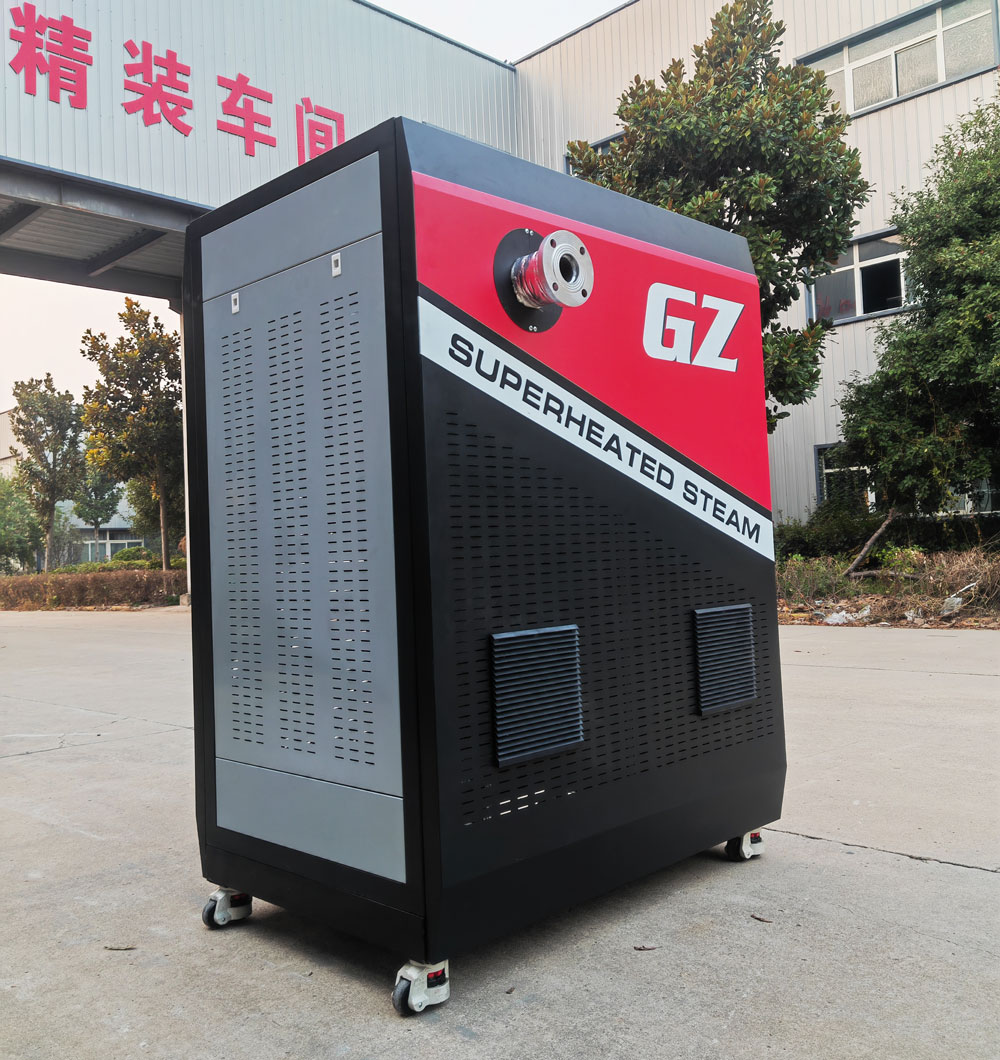

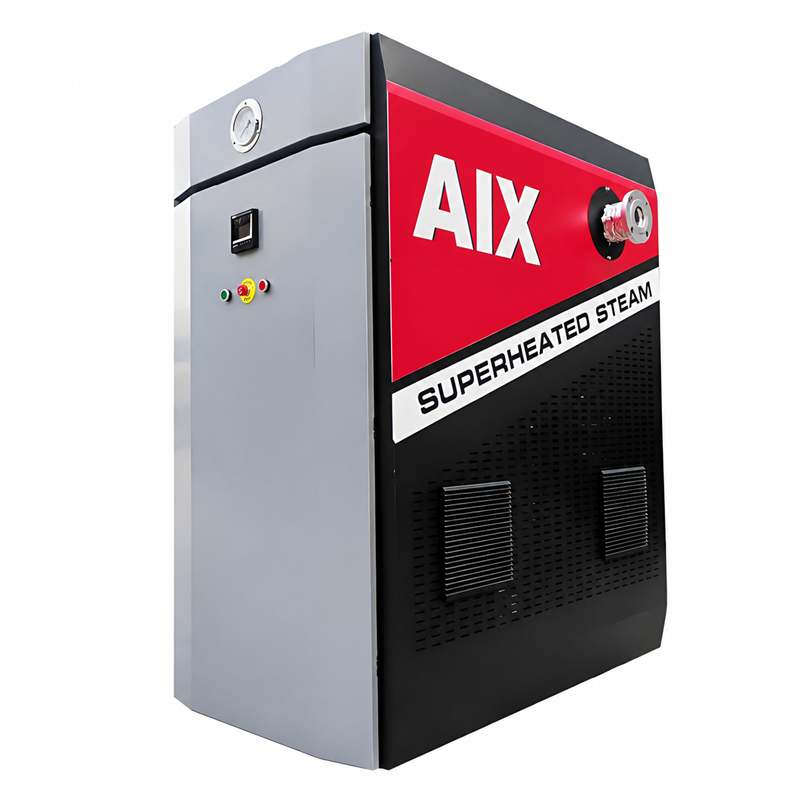

ZQGR-DC Electric Heating Superheated Steam Boiler
Superheated steam is an important heat medium widely used in industrial and energy fields. It is formed by secondary heating of saturated steam to a temperature higher than the boiling point under the corresponding pressure. Conventional superheated steam can reach above 300°C, and the supporting stainless steel steam superheater can raise the steam temperature to over 600°C. This steam plays a key role in power generation, process heating and industrial equipment driving.
The core difference between superheated steam and saturated steam is the matching rule of temperature and pressure: saturated steam has a one-to-one corresponding relationship between temperature and pressure, while the temperature and pressure of superheated steam have no fixed one-to-one correspondence and are also affected by steam density. Although the heat transfer efficiency of superheated steam is inferior to saturated steam, its high-temperature property achieves higher efficiency when converting thermal energy into mechanical energy.
电磁加热过热蒸汽锅炉 电磁加热过热蒸汽
型号规格
型号规格		设计功率
设计功率 (kw/h)		额定电流
额定电流 (A)		适用电压
设计电压(V)		过热温度
蒸汽温度(℃)		过热量
蒸汽量 (kg/h)		运输
重量Transport Weight (kg)		外形
尺寸ExternalDimensions (mm)
DCGR101015220~380200~35045~9050600*700*1500
DCGR202030380~500200~35090~18075700*700*1500
DCGR303045380~500200~350135~27085700*800*1700
DCGR404060380~500200~350180~360120800*800*1700
DCGR505075380~500200~350230~4501351000*800*1700
DCGR606090380~500200~350270~5401601000*800*1700
DCGR8080120380~500200~350360~7202201000*1000*1700
DCGR160160240380~500200~450720~14006701200*1400*1800
DCGR240240360380~500200~4501000~200012001200*2200*1800
DCGR320320480380~500200~4502000~300015001200*3000*1800
