Steam boilers are used to provide heat for brewing kettles and other processes. Sitong Boiler provides various boilers with different models and capacities to meet the requirement of beer industry, with a focus on efficiency and performance. Usually, the brewery/winery uses diesel oil and LPG boilers for steam and heat production. Generally, brewery industries with the common size are equipped with the 0.5ton~2ton boilers, the specific capacity should based on the production capacity. Sitong boiler produce


Uses of Boiler & Steam in Brewery Industry

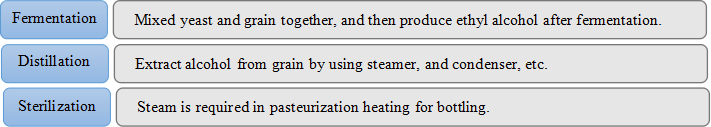

During the process of green malt drying, raw material gelatinizing and saccharifing, wort boiling, beer fermenting, bottle pasteurizing, and sanitization in brewhouse, steam play an significant role.

Types and Specifications of Boilers Suitable for Brewery Industry


Price of Beer Boilers

The price of beer boilers are based on the capacity and accessories. Generally, the accessories of boilers include burner/grate, electric controller, steam header, water softener, BFW pump, platform ladder, and chimney, etc. If you would like to use the specific devices (brand, materials, quantity, etc.) or the additional equipment (air preheater, economizer, condenser, etc.), the prices are quite different. So, if you would like to get the exact price, please inquire for the details.

How to Select a Proper Boiler for Brewery Industry

1. Determine the capacity of the boiler. The boiler capacity should based on the Heating Load Curve or Heat Balance Diagram, and includes the heat loss in pipelines, self-used heat of boiler room, available used waste heat. While, usually, it is difficult to get the Heating Load Curve, the heating load could get based on the max thermal consumption per hour within production/heating/domestic, and then determine by using the coefficient.

2. Determine the heating supply medium. Generally, the brewery industry use the steam boiler for production. If there are large hot water demanded as well, both steam boiler and hot water boiler should be used.

3. Determine the boiler heating parameters, including pressure, temperature, etc.

4. Determine the boiler efficiency. In order to benefit for economic management, the boilers should have high thermal efficiency, and the boiler output, quantity and other performances have to adapt to the change of heat loading.

5. It’s better to select the boilers with same capacity or combustion equipment. If different, the max limitation is two models, to decrease the problems of equipment layout and management.
