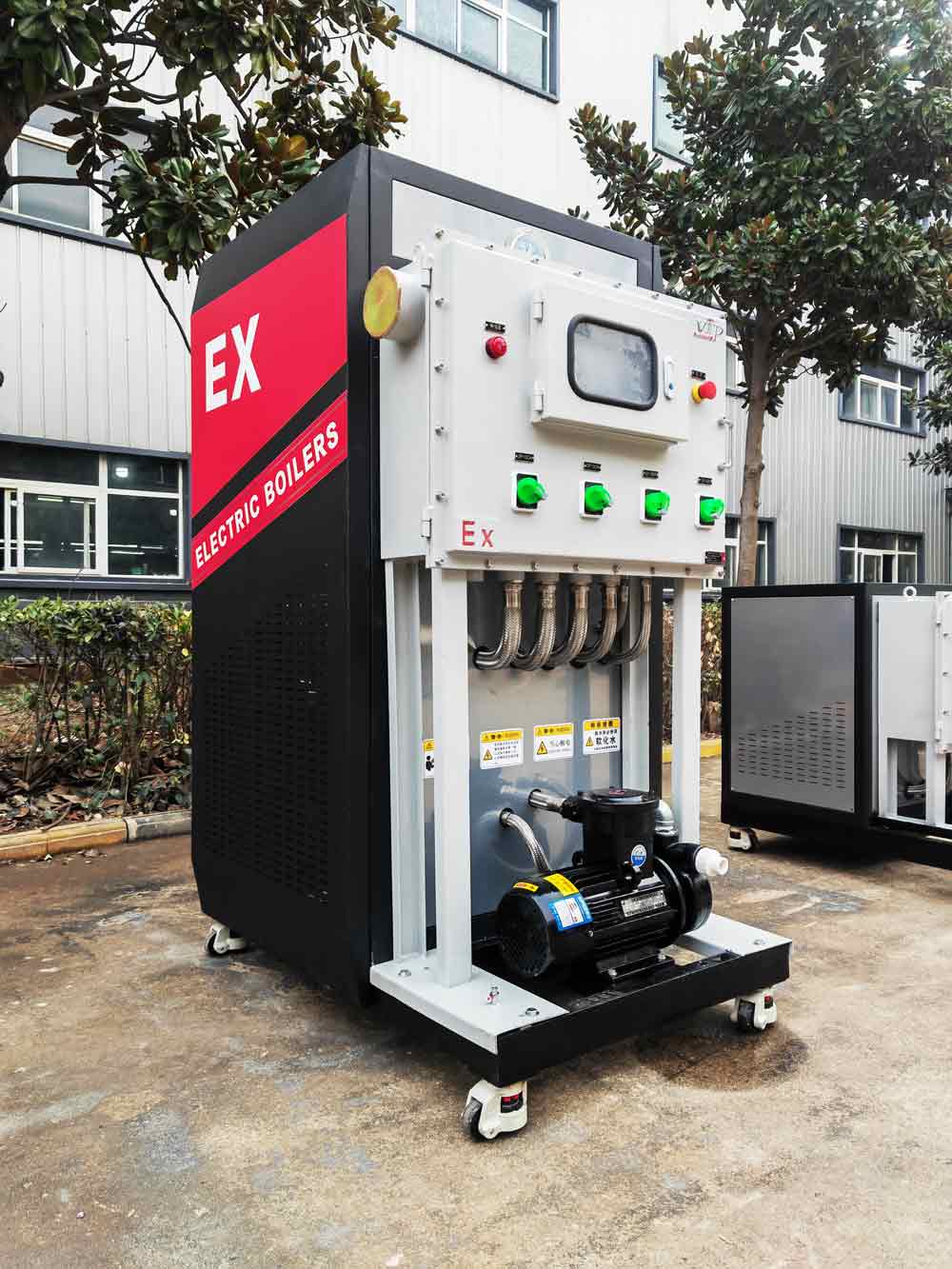

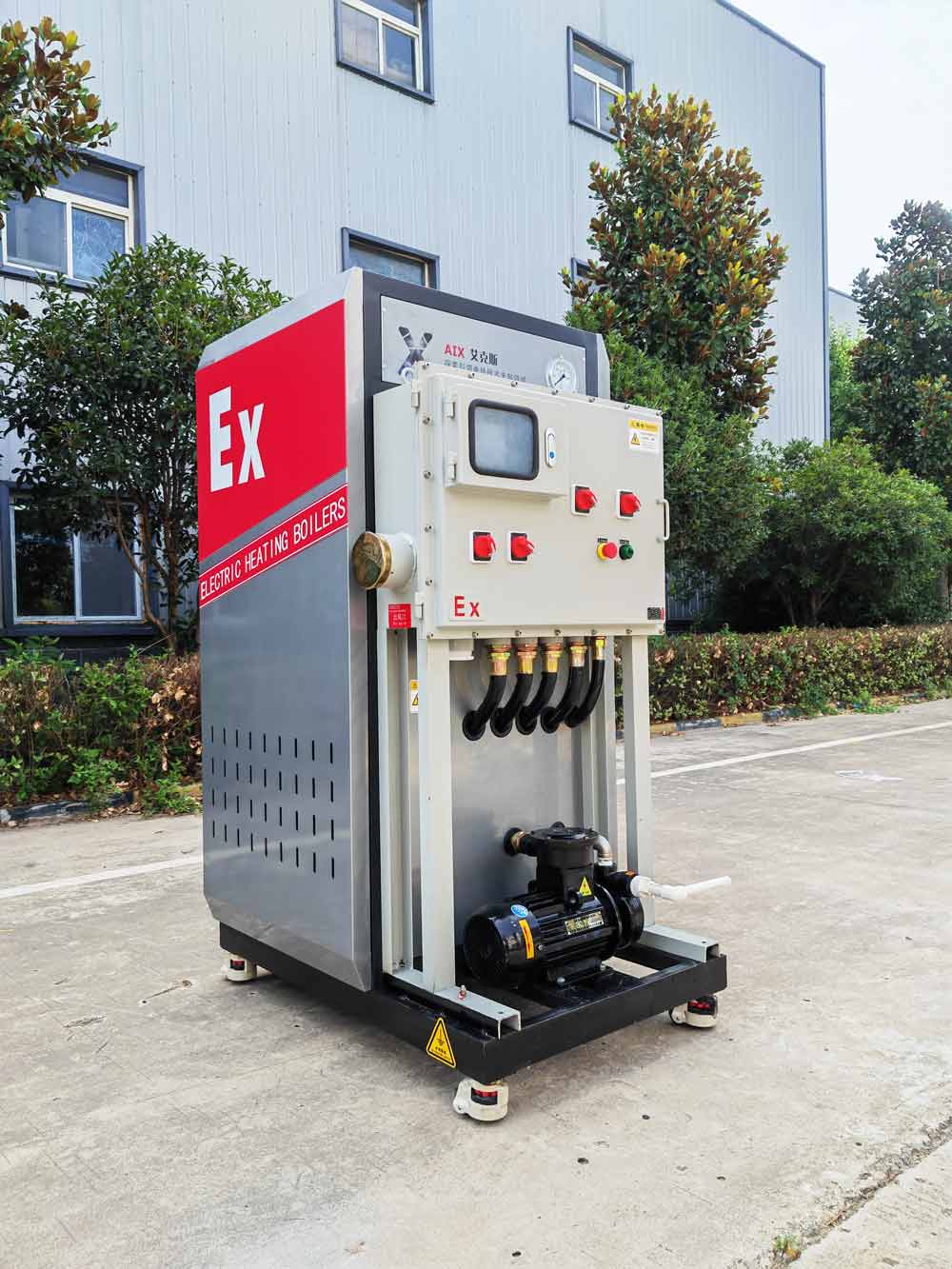

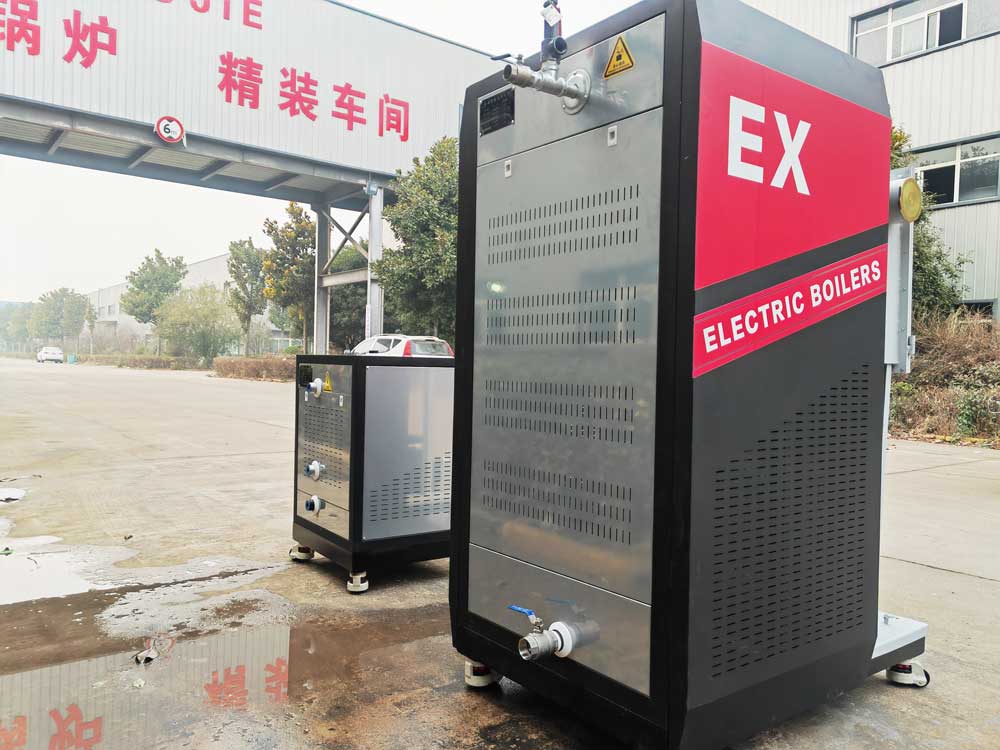

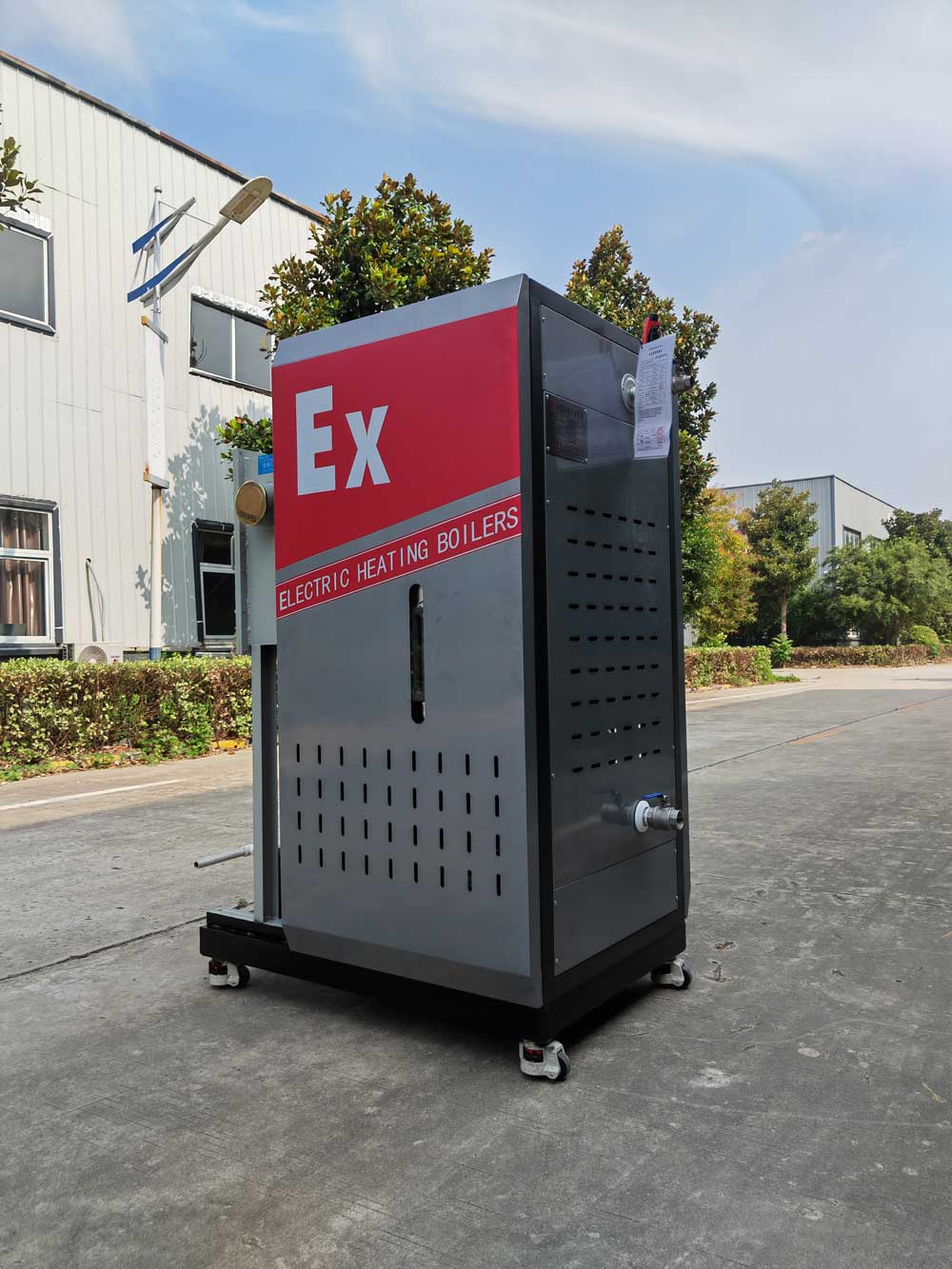

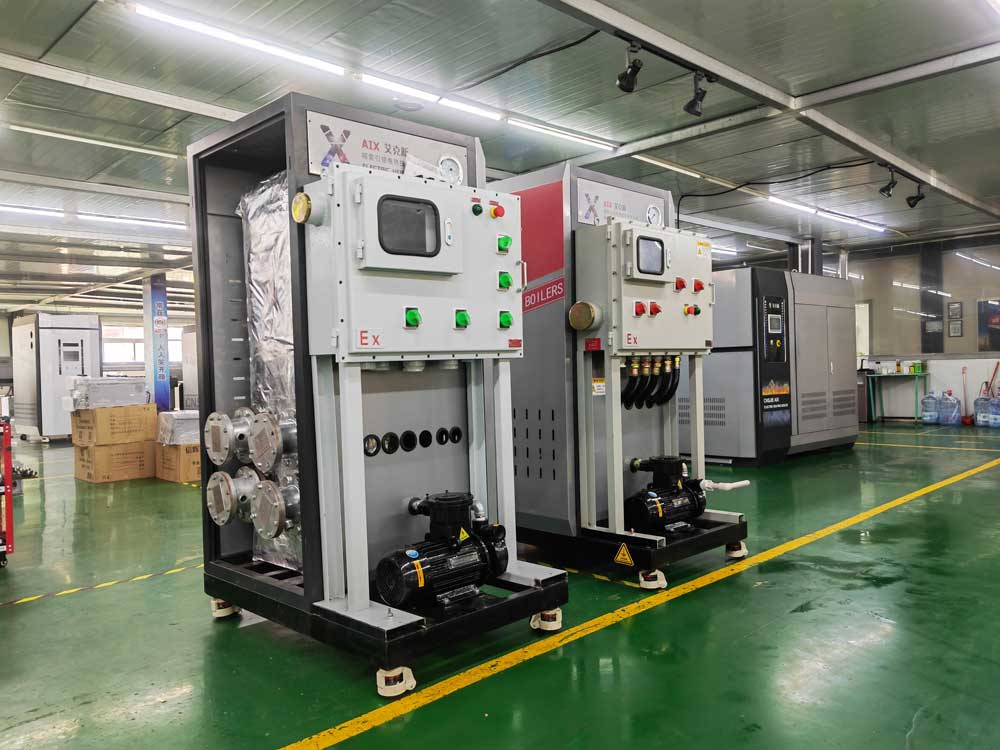

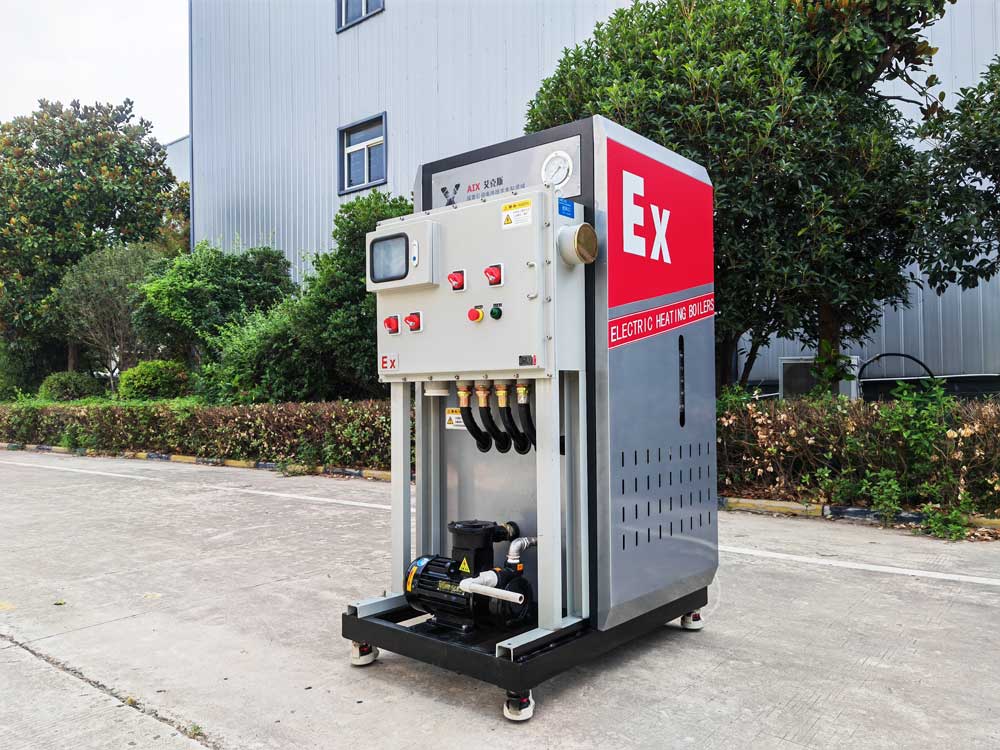

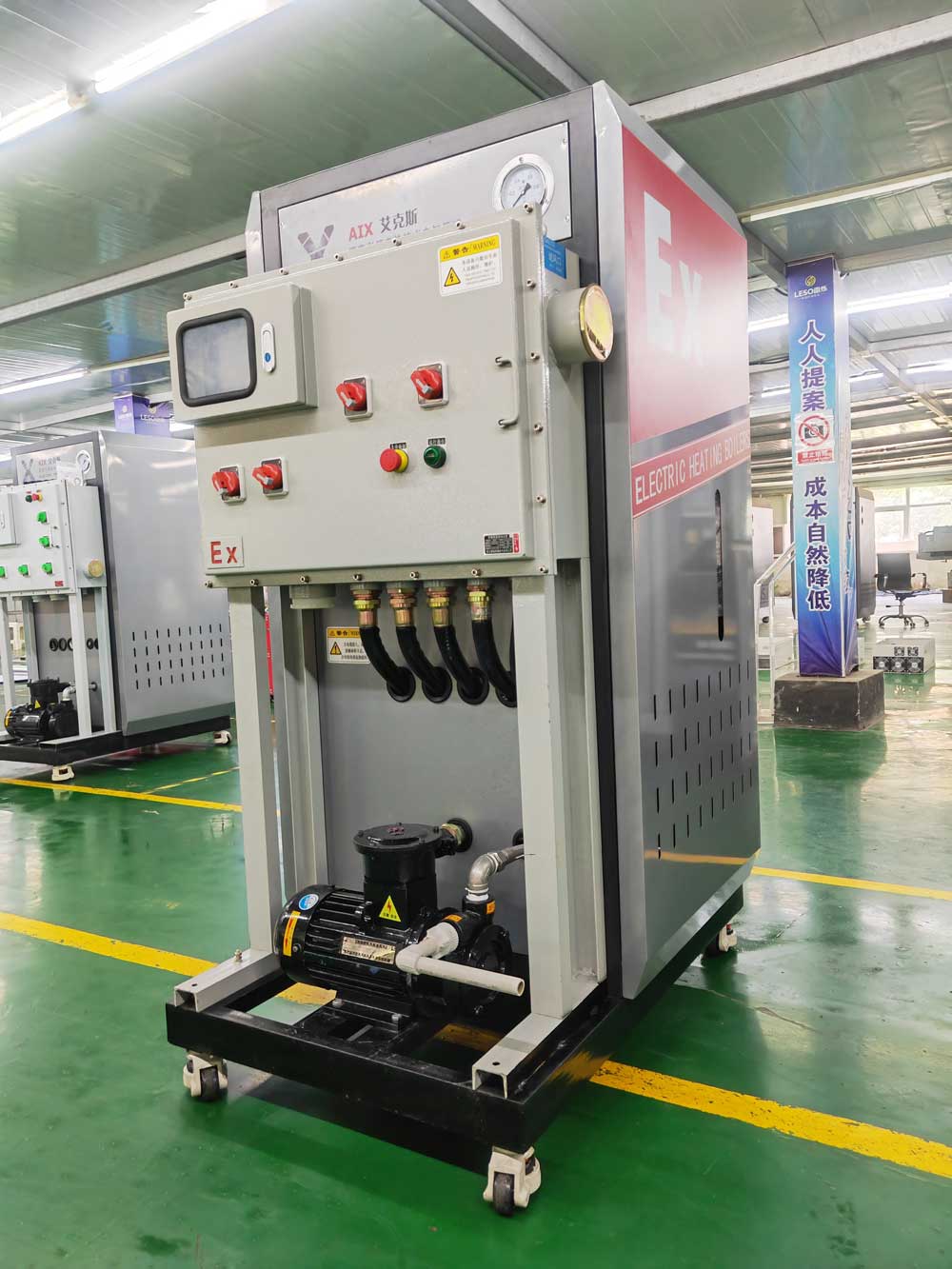

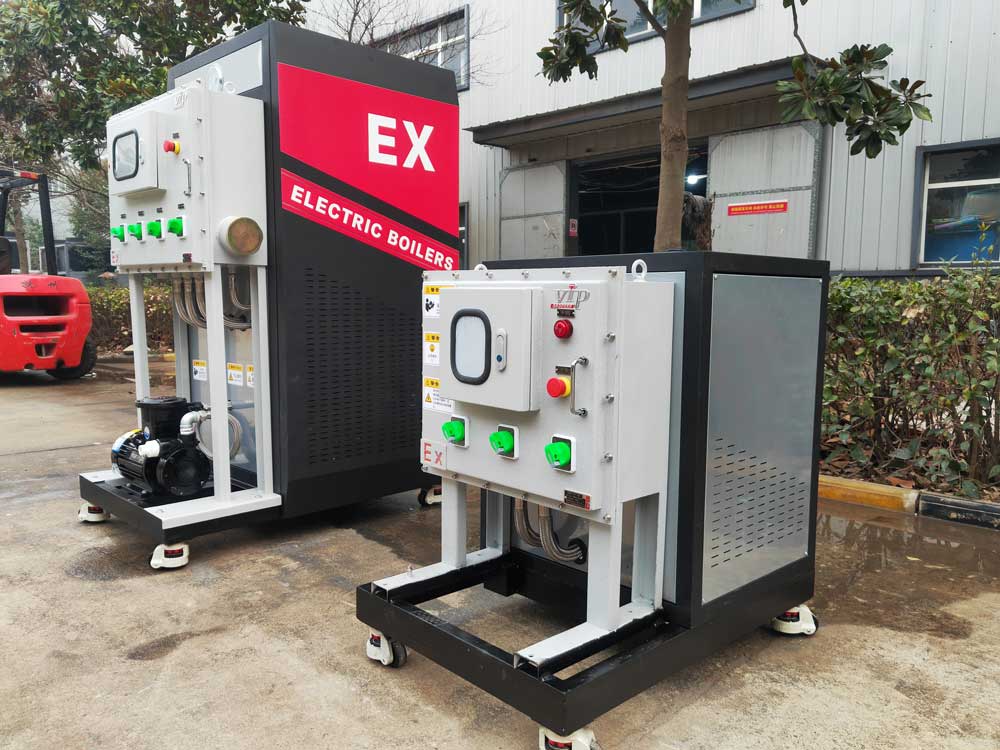

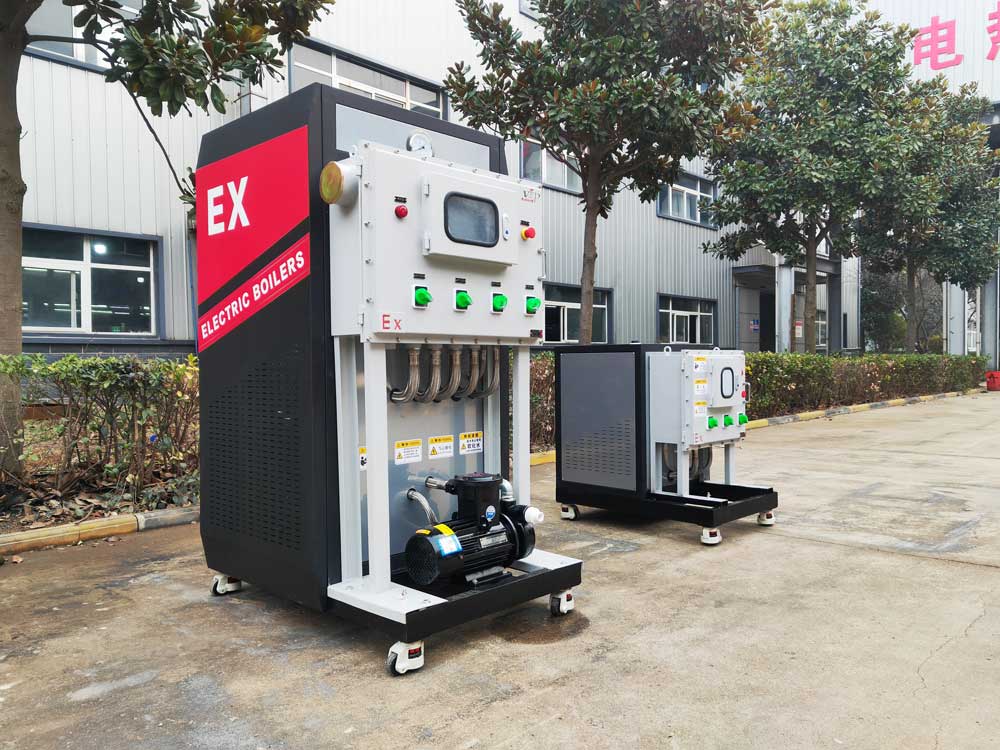

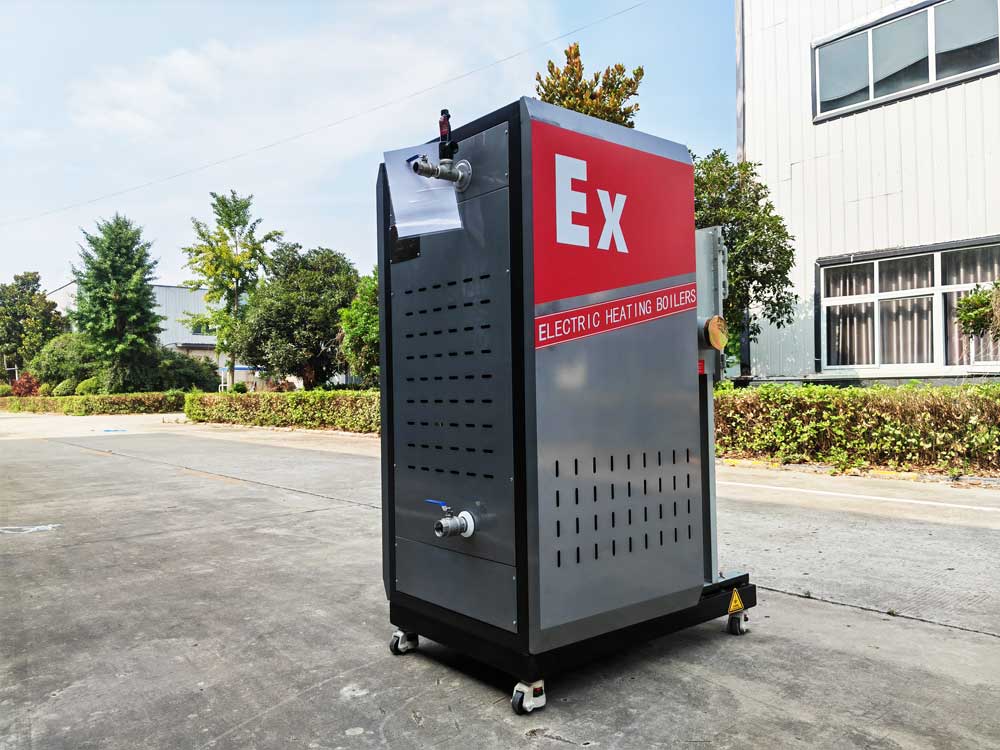

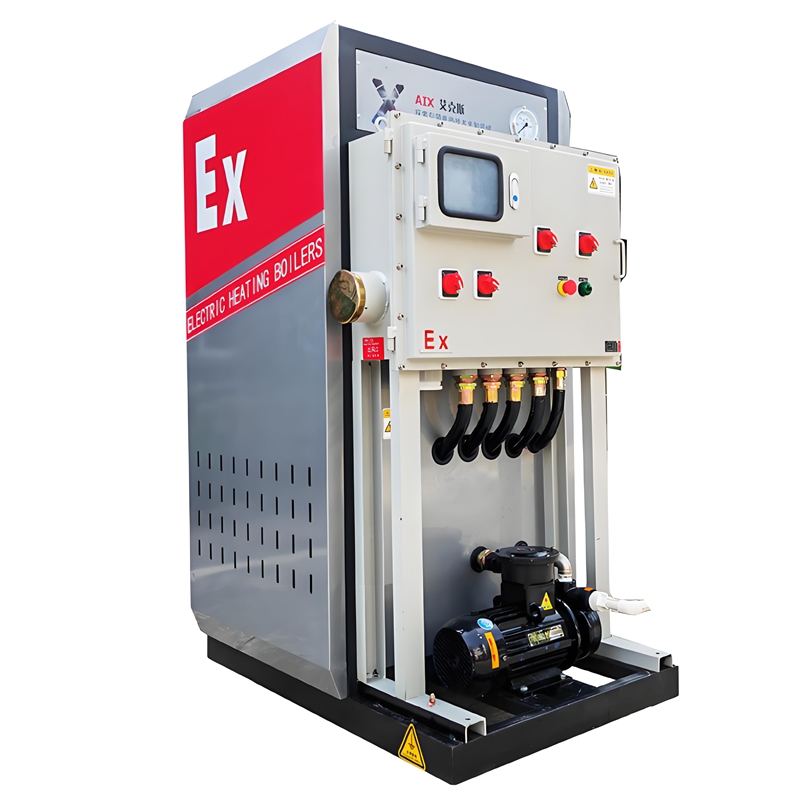

The DZZQ-EX electric heating explosion-proof steam boiler (steam generator) is mainly suitable for industrial production sites that require explosion-proof standards or high-temperature steam. Common applicable scenarios include oil fields, mines, high-dust workshops, chemical workshops and other places. Such sites have strict explosion-proof requirements for electrical equipment, so explosion-proof steam boilers and generators are necessary to guarantee production safety.

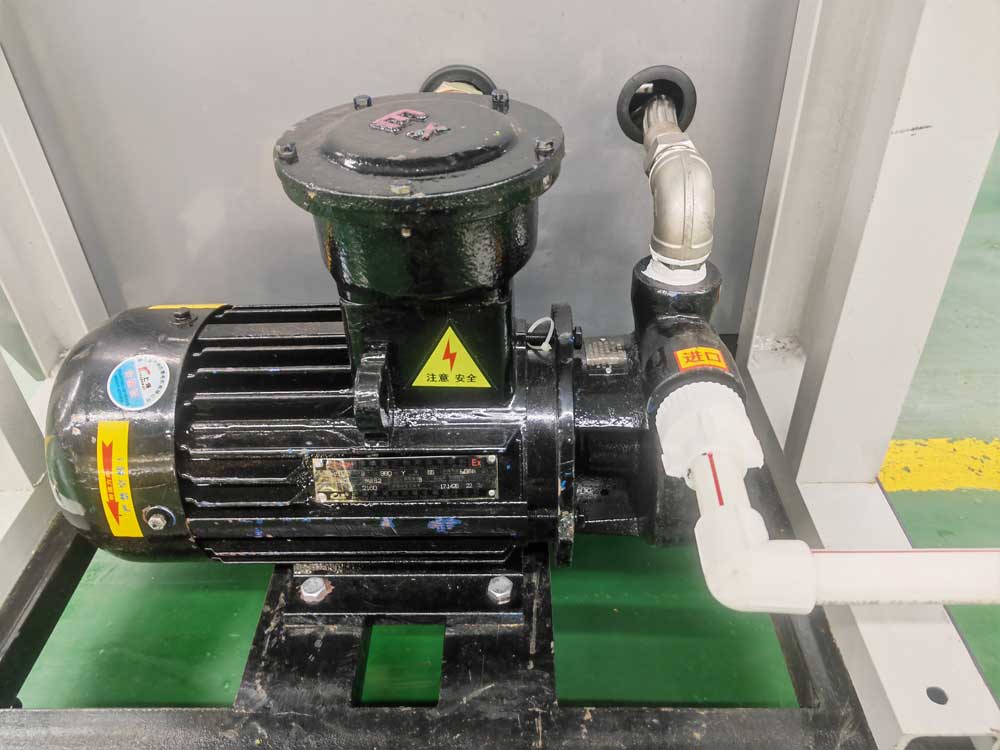

Explosion-proof steam generators take explosion safety as a core factor during design and manufacturing. They are equipped with a full range of explosion-proof accessories, including explosion-proof cables, explosion-proof junction boxes, explosion-proof electric heating tubes, explosion-proof water pumps, explosion-proof liquid level floats and other parts, supporting safe operation in flammable and explosive environments.
When using explosion-proof steam boilers, users need to pay attention to their explosion-proof grade and safety performance. This ensures stable steam supply under special working conditions, as well as fully protects personnel and equipment safety.
电阻蒸汽锅炉参数表
型号规格
Model specifications		设计功率
Design power (kw/h)		额定电流
Rated current (A)		适用电压
Design Voltage (V)		额定蒸发量
Rated evaporation (kg/h)		额定压力
Rated pressure (Mpa)		运输重量
Transport weight (kg)		外形尺寸
External dimensions (mm)
DZZQ363654220~500500.1~0.885700*700*1500
DZZQ7272108380~5001000.1~0.81251000*1200*1700
DZZQ144144215380~5002000.1~0.83001200*1000*1700
DZZQ216216324380~5003000.1~0.84501400*1400*1700
DZZQ360360540380~5005000.1~1.06001600*1400*1700
DZZQ7207201080380~50010000.1~1.011003000*1400*1700
DZZQ108010801620380~50015000.1~1.2517003600*1400*1750
DZZQ144014402160380~50020000.1~1.2523004000*2100*1800
DZZQ216021603240380~50030000.1~1.2535005500*2200*1800
DZZQ288028804320380~50040000.1~1.2555007000*2200*1800
