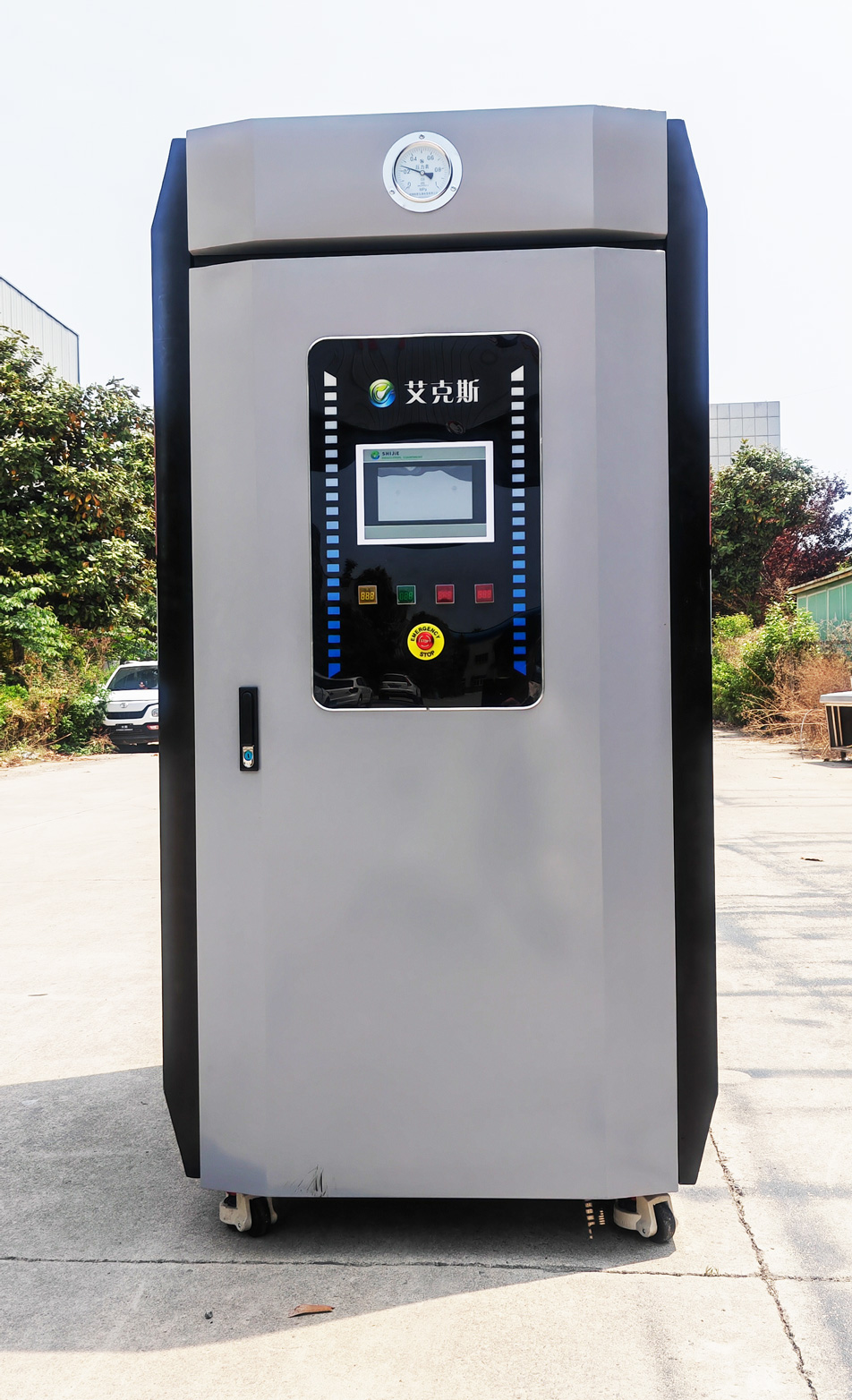

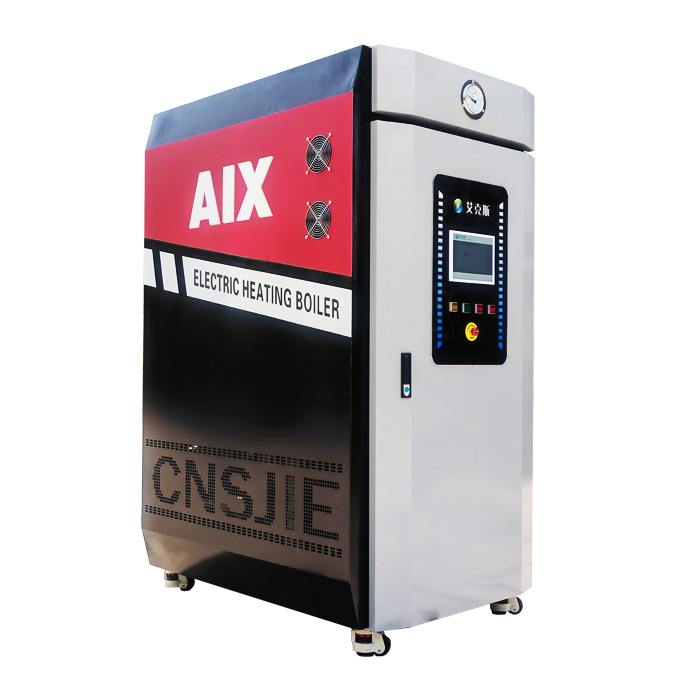

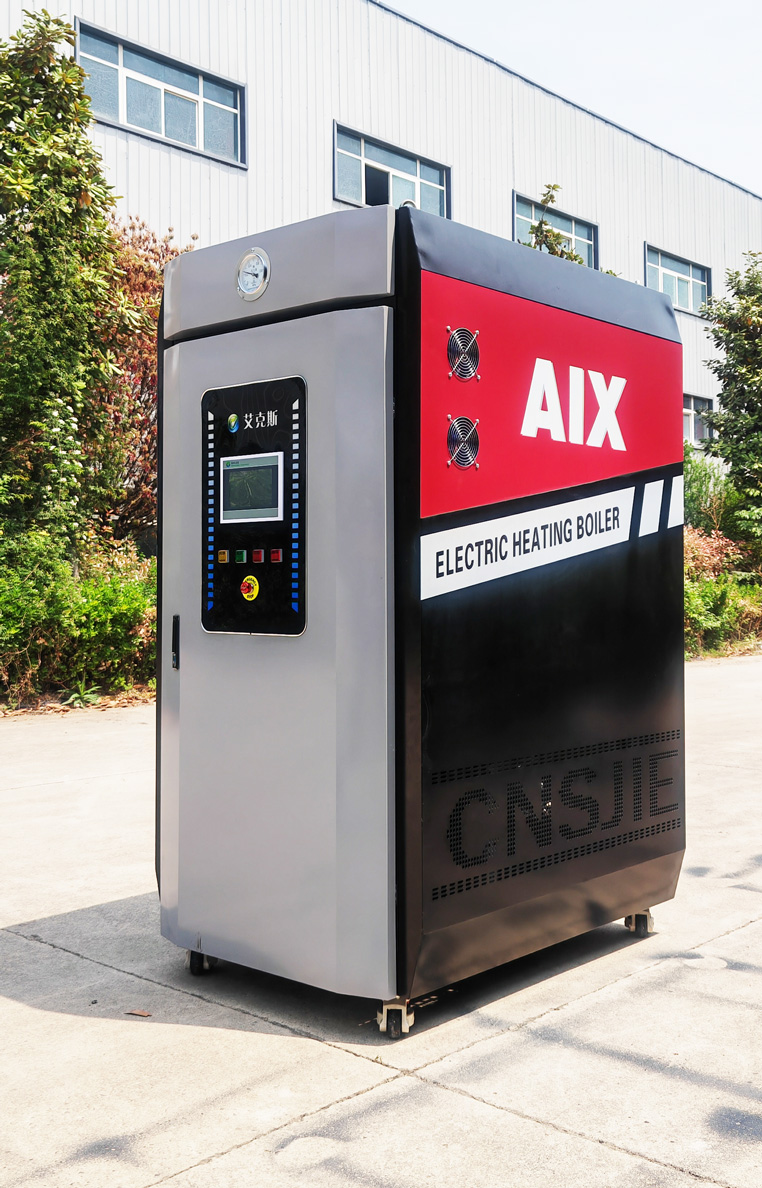

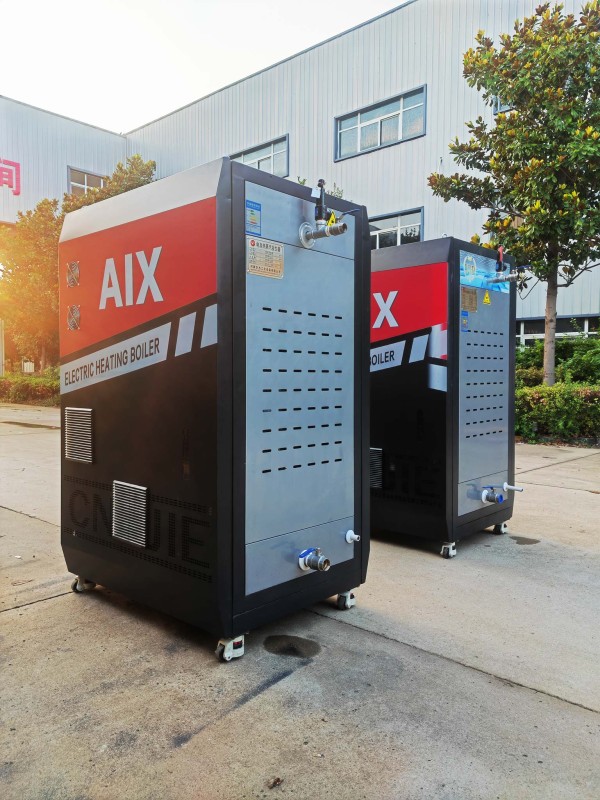

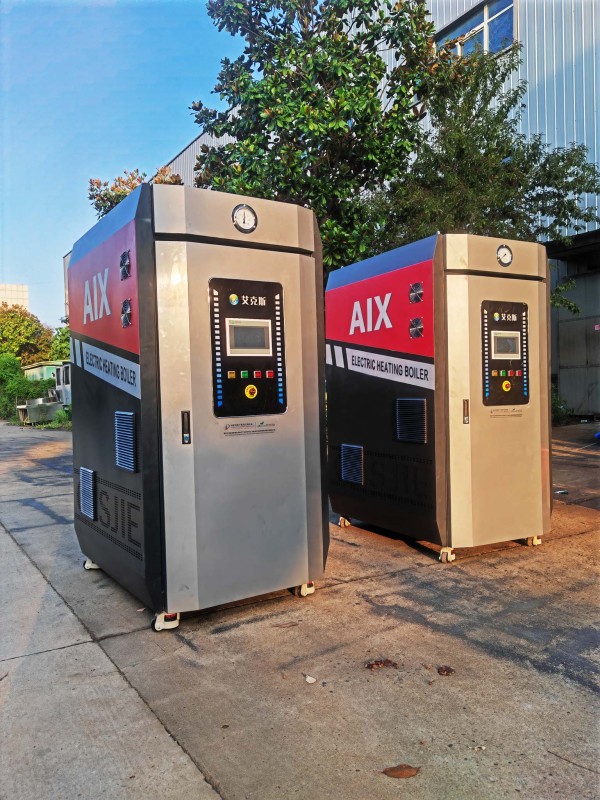

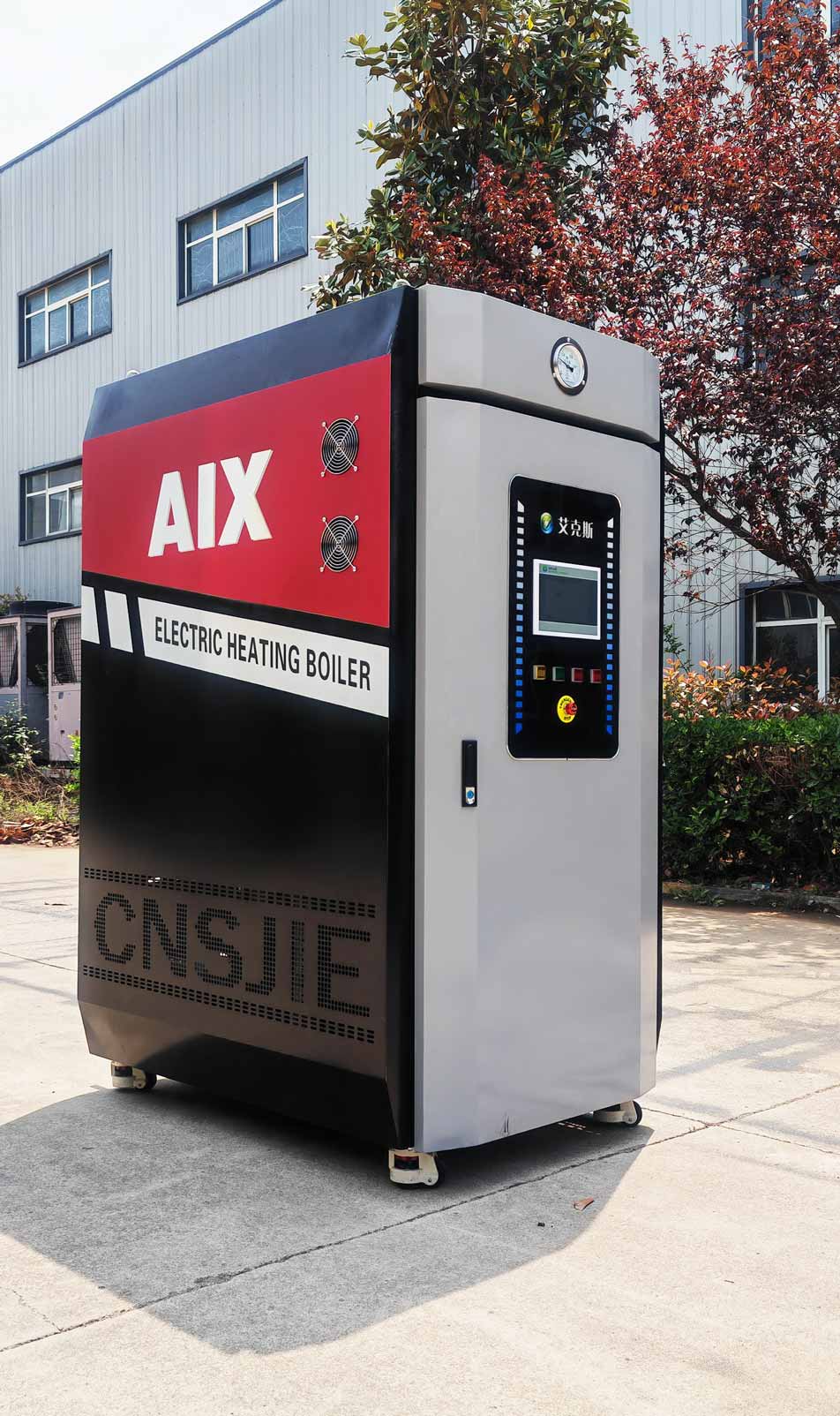

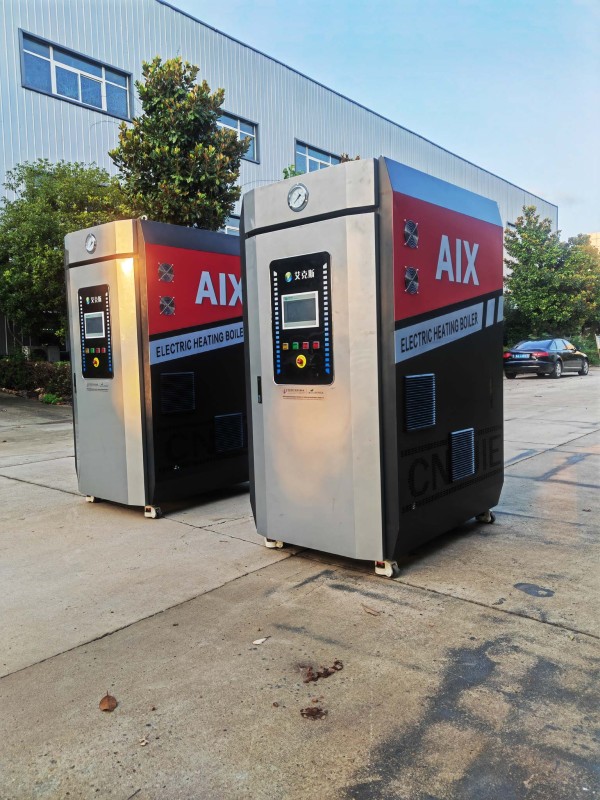

The DCZQ electromagnetic induction heating steam boiler (steam generator) is a new type of steam boiler equipment that uses the principle of electromagnetic induction to convert electrical energy into thermal energy and generate steam.
The working principle of an electromagnetic steam generator is based on electromagnetic induction. When alternating current passes through an electromagnetic coil, a magnetic field is generated around the coil, and the changing magnetic field induces current inside the conductor to produce heat. This process converts electrical energy into thermal energy to generate steam.
Adopting electromagnetic induction heating technology, this equipment can rapidly heat water to high temperature for steam output, with electrothermal conversion efficiency over 99%. Without any combustion process, the electromagnetic steam boiler discharges no harmful gas or smoke, making it eco-friendly.
The DCZQ electromagnetic steam boiler features outstanding energy saving performance: it automatically adjusts output power based on real steam consumption, cutting energy consumption by 30% and maximizing electric energy utilization.
型号规格
Model specifications		设计功率
Design power (kw/h)		额定电流
Rated current (A)		适用电压
Design Voltage (V)		额定蒸发量
Rated evaporation (t/h)		额定压力
Rated pressure (Mpa)		运输重量
Transport weight (kg)		外形尺寸
External dimensions (mm)
DCZQ303045220~500420.1~0.855800×700×1500
DCZQ505075380~500700.1~0.867800×700×1500
DCZQ606090380~500840.1~0.81101200×1000×1700
DCZQ8080120380~5001120.1~0.82001200×1000×1700
DCZQ160160240380~5003360.1~0.83801600×1400×1700
DCZQ320320480380~5004480.1~0.85802000×1400×1700
DCZQ400400600380~5005600.1~0.88002400×1400×1750
DCZQ7207201080380~50010000.1~0.814005000×1400×1800
DCZQ104010401560380~50015000.1~0.820005000×2000×1800
DCZQ144014402160380~50020000.1~0.828005500×2200×1800
