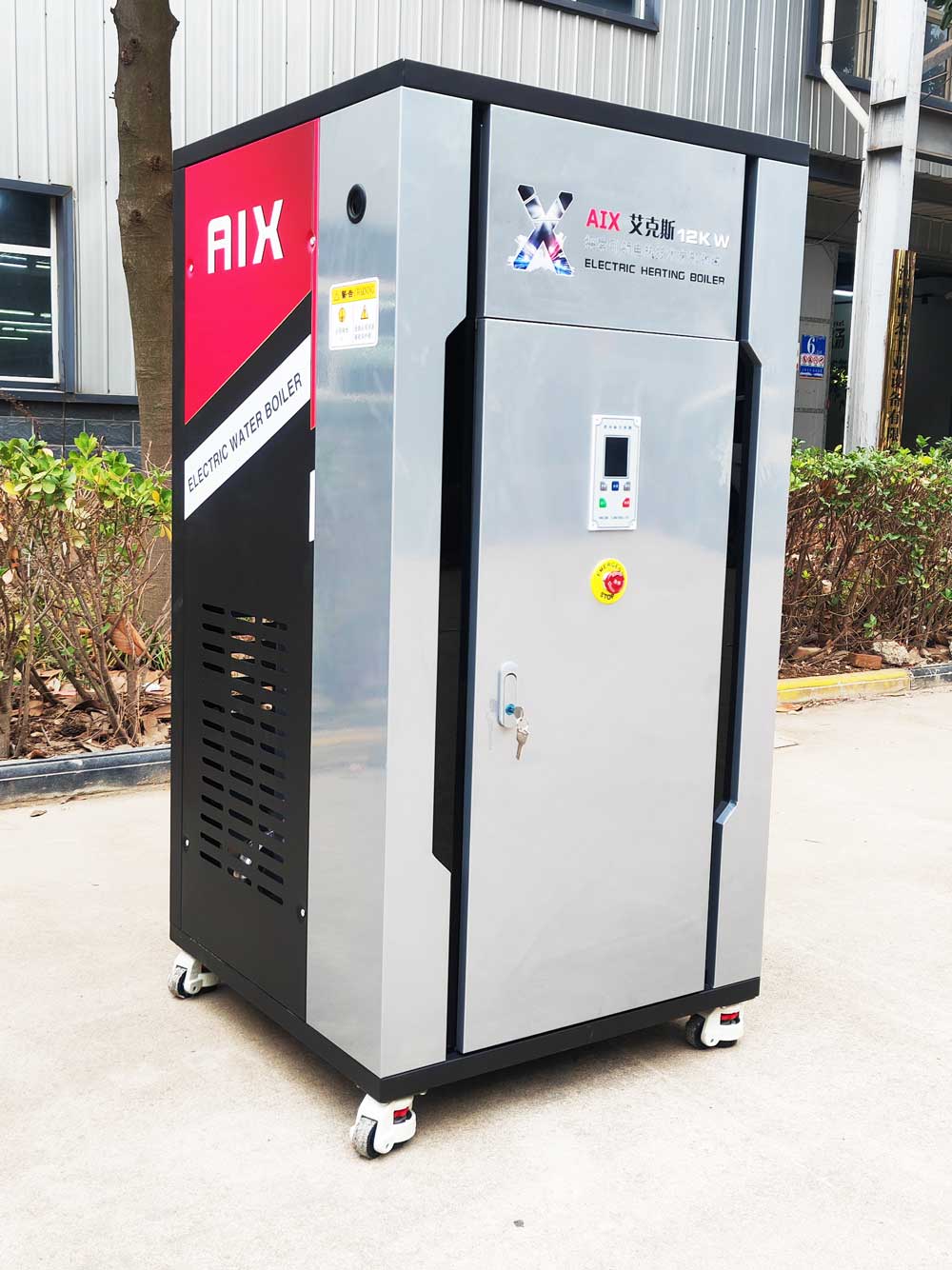

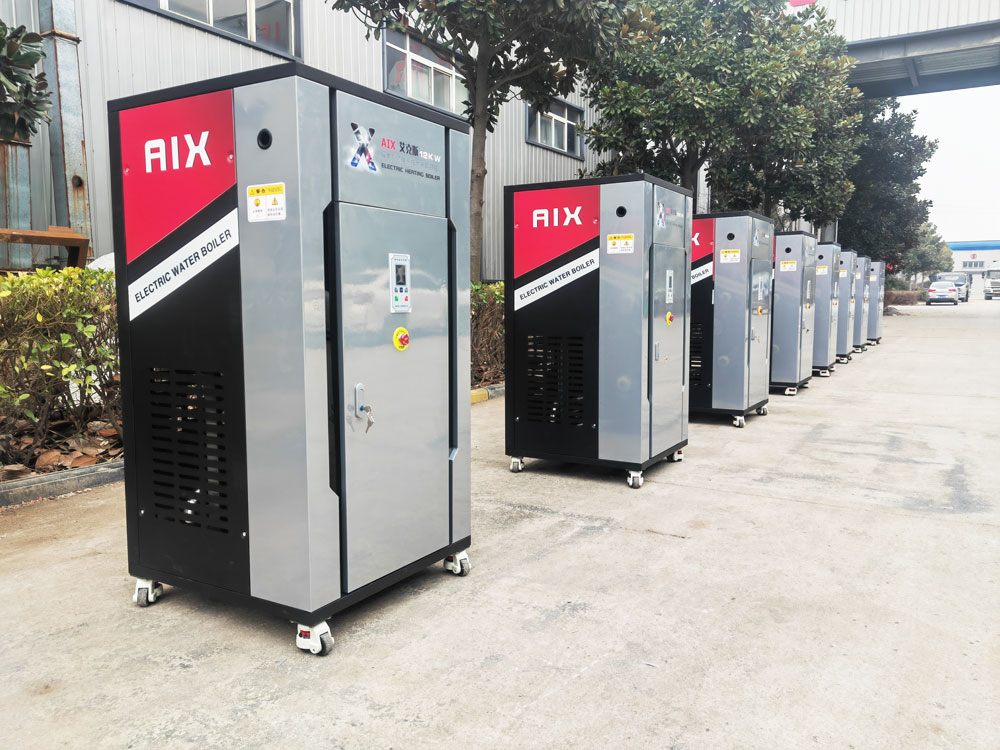

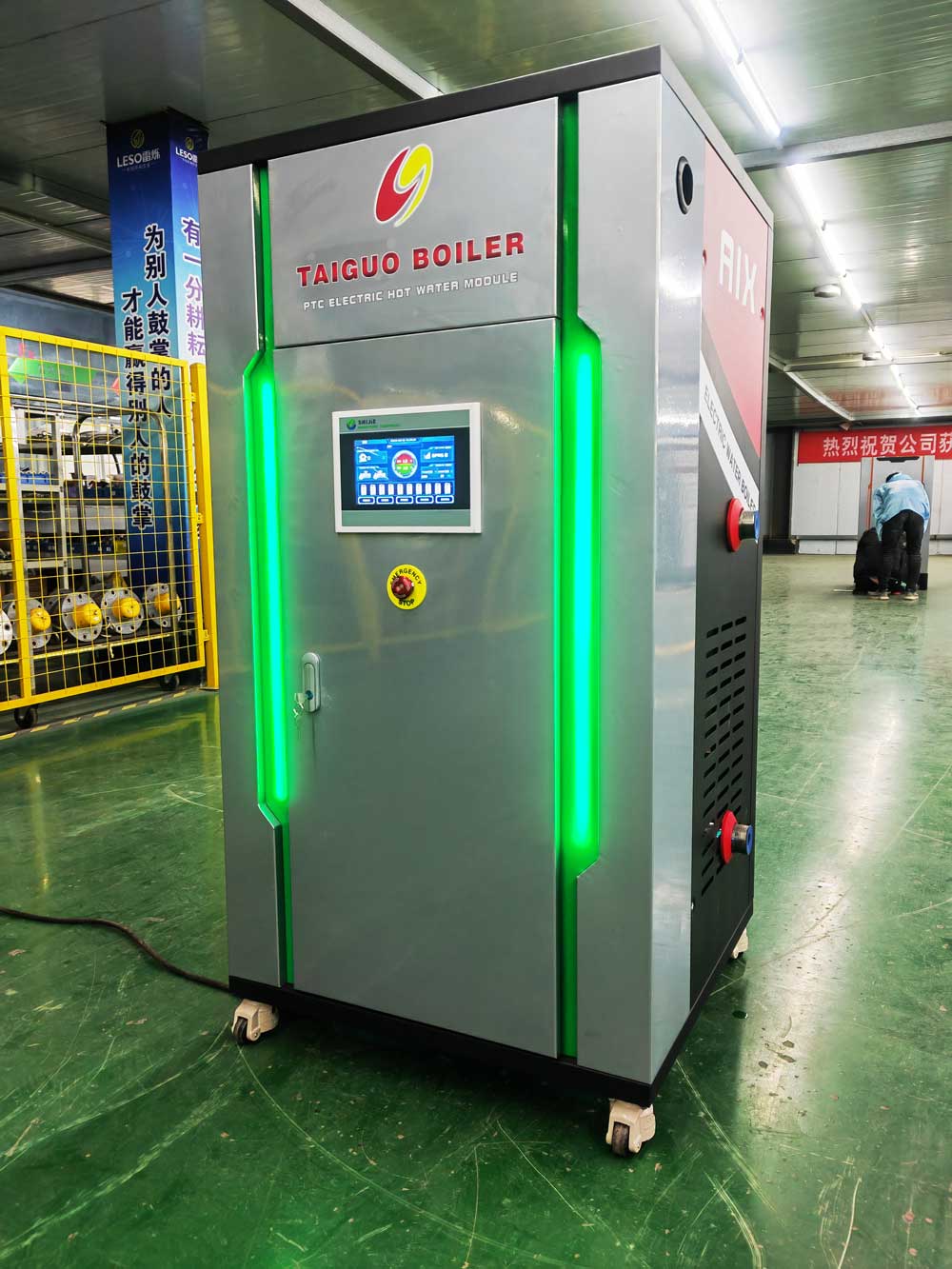

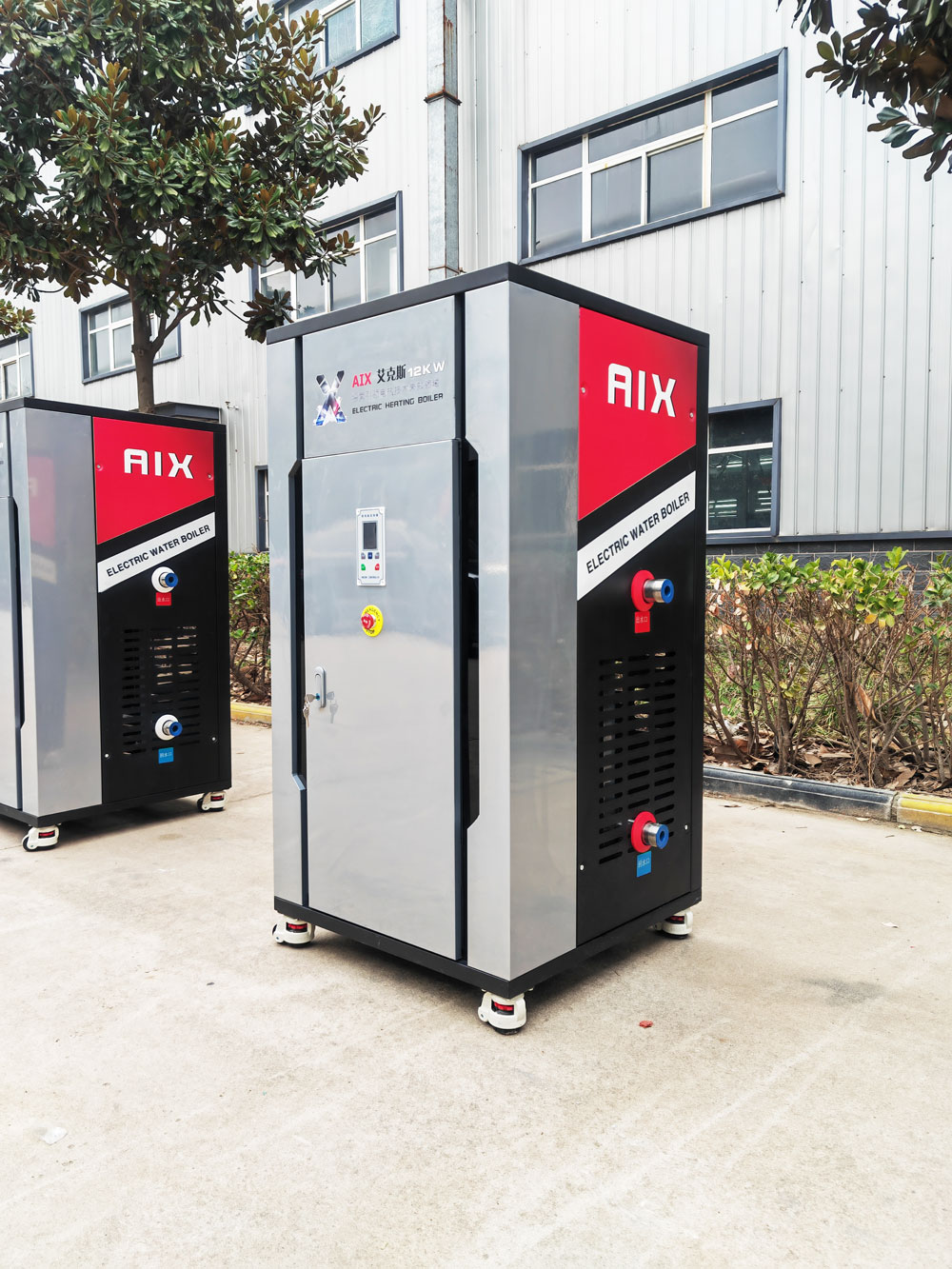

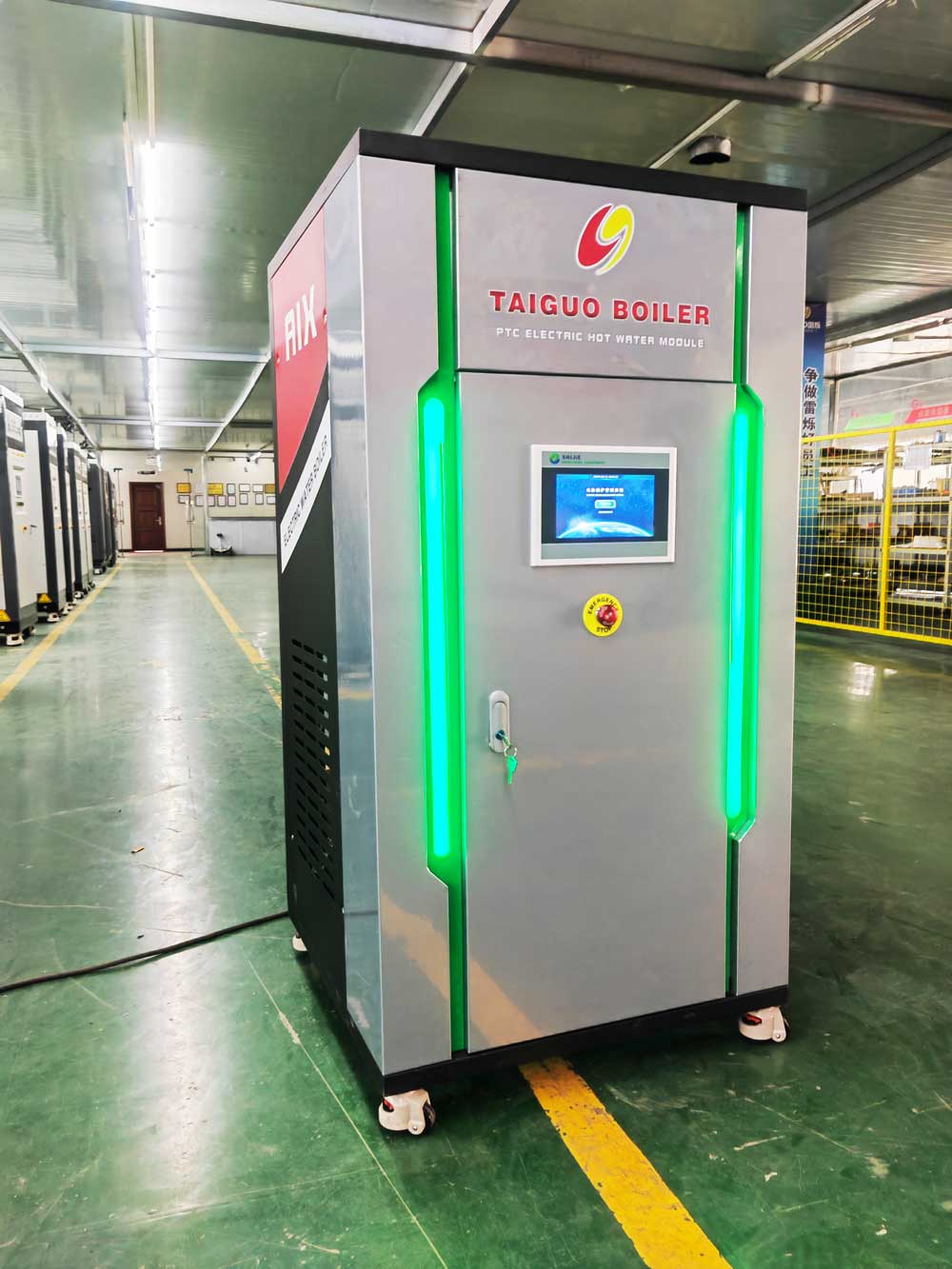

PLC semiconductor electric heating hot water module boiler
The PTC semiconductor electric heating boiler module is an electric heating device based on semiconductor technology that utilizes the properties of PTC (Positive Temperature Coefficient) materials. PTC materials are a specialized type of semiconductor whose electrical resistance increases as the temperature rises—a characteristic known as a positive temperature coefficient.

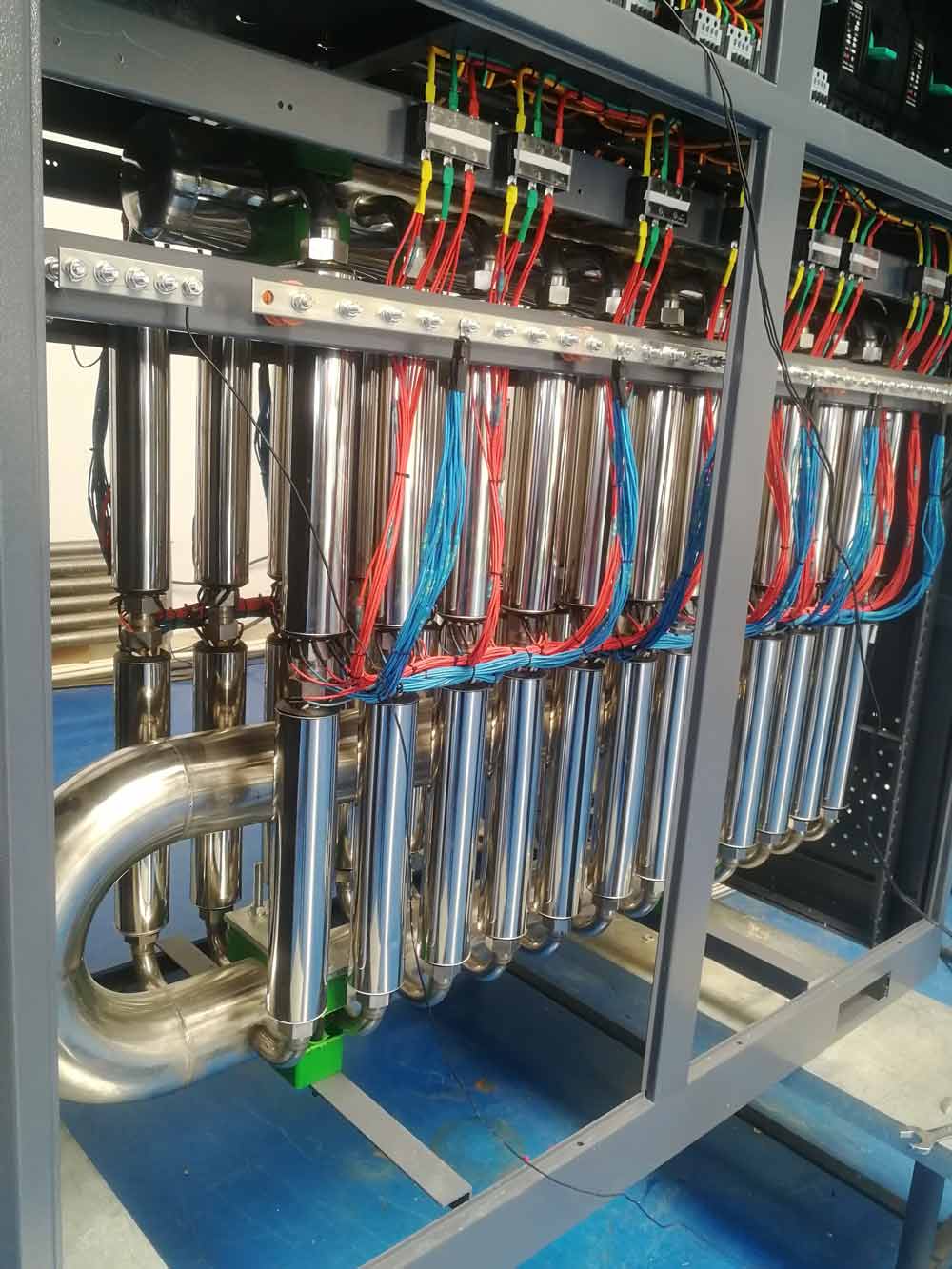

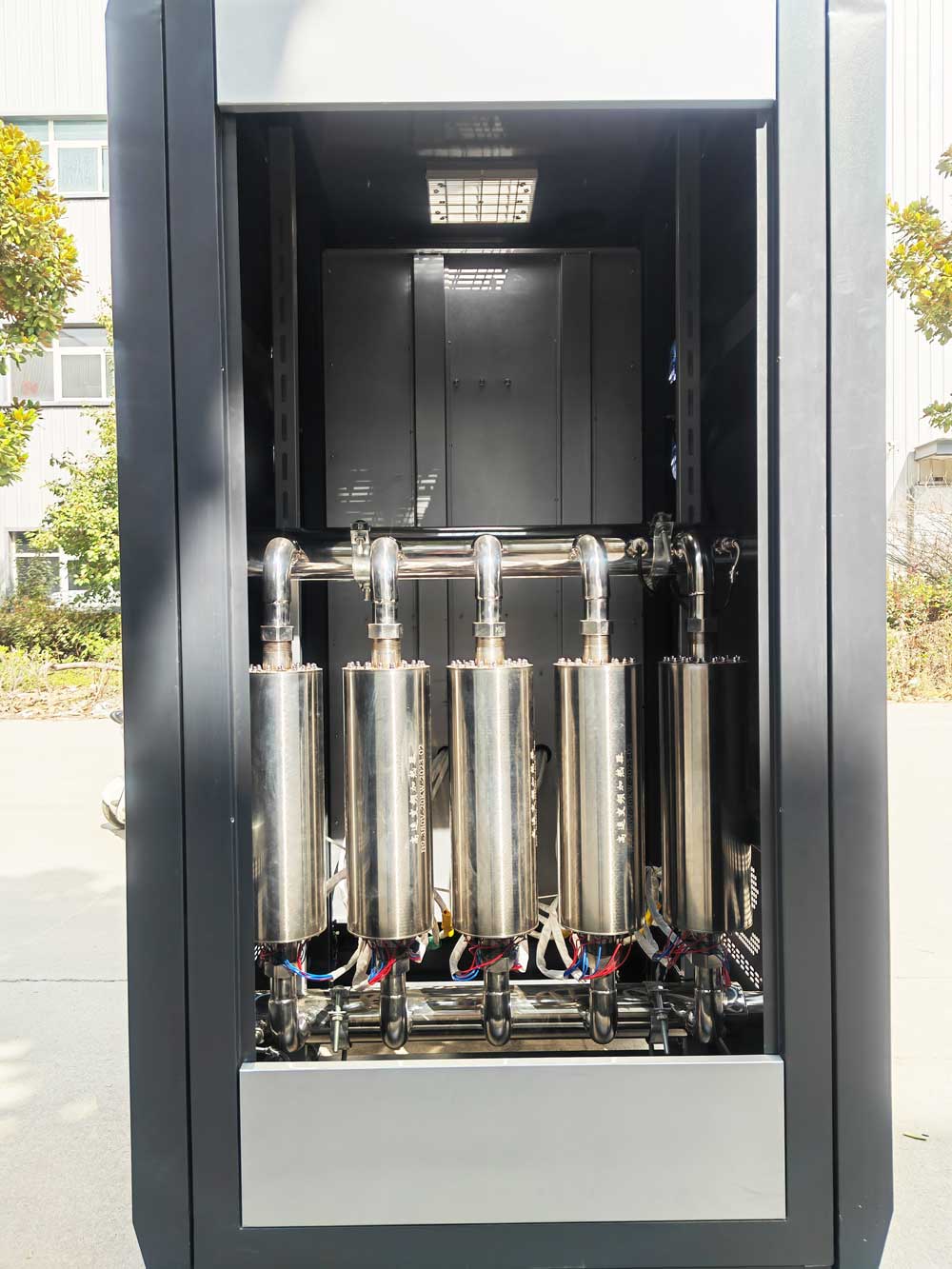

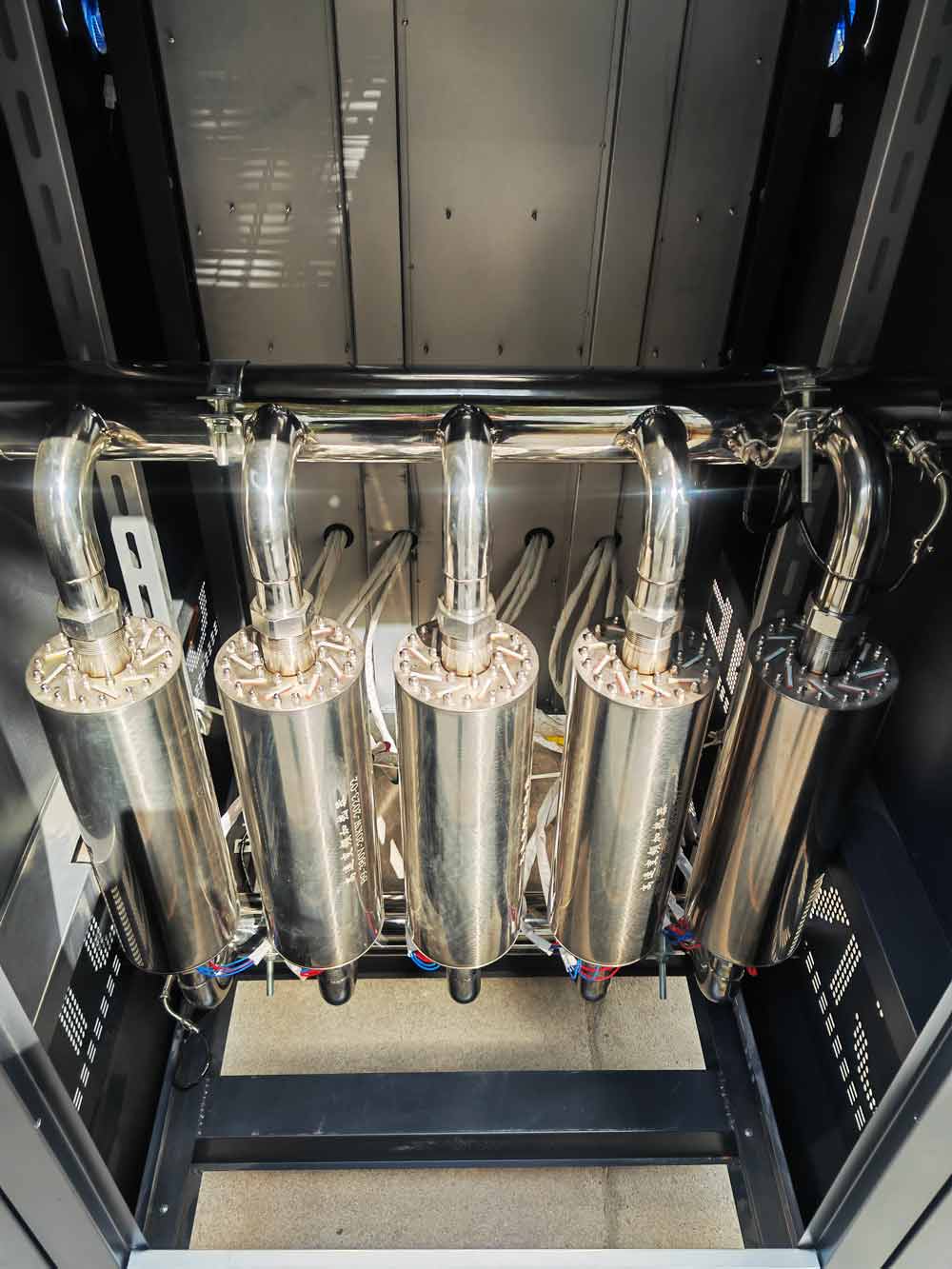

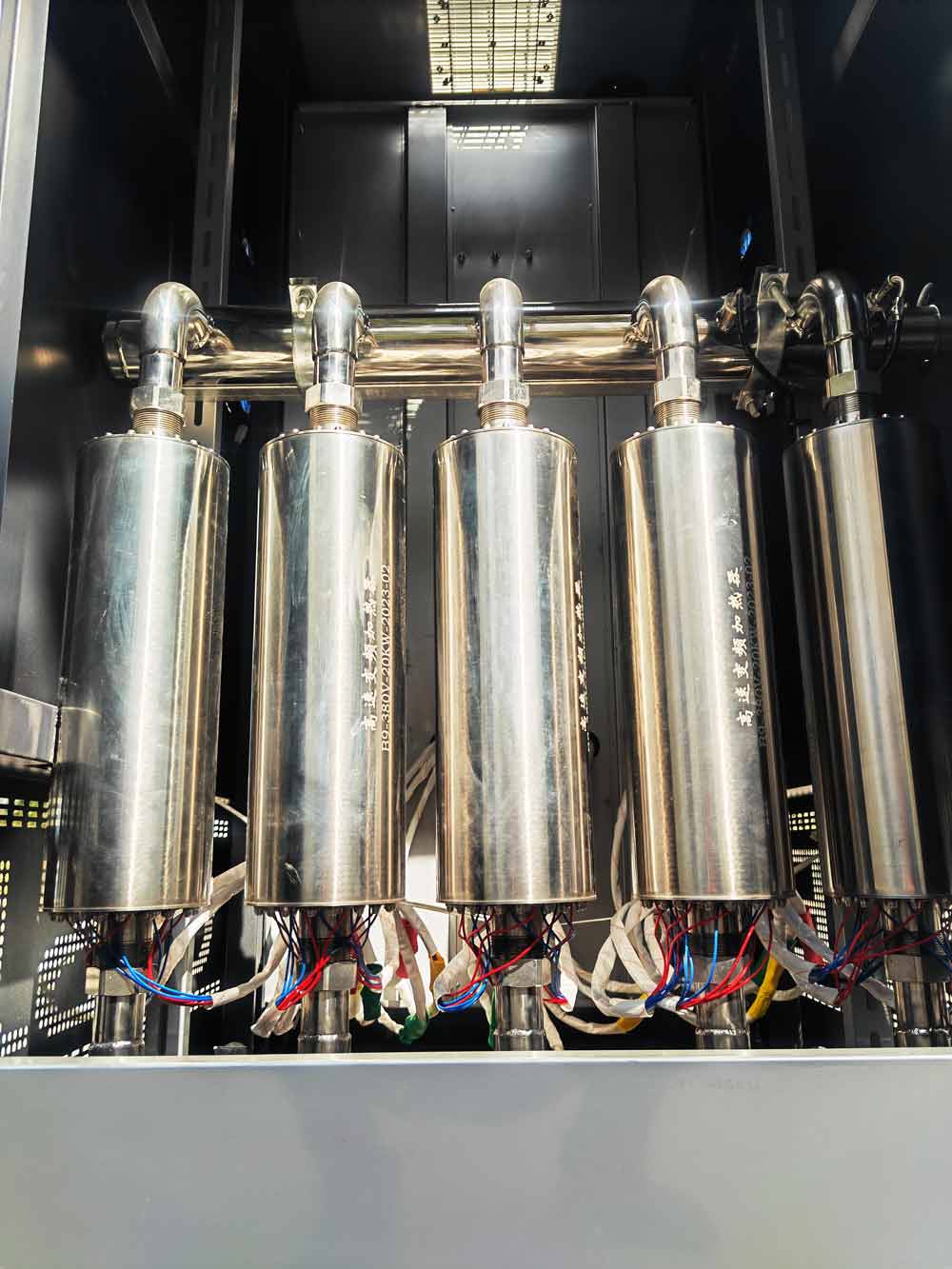

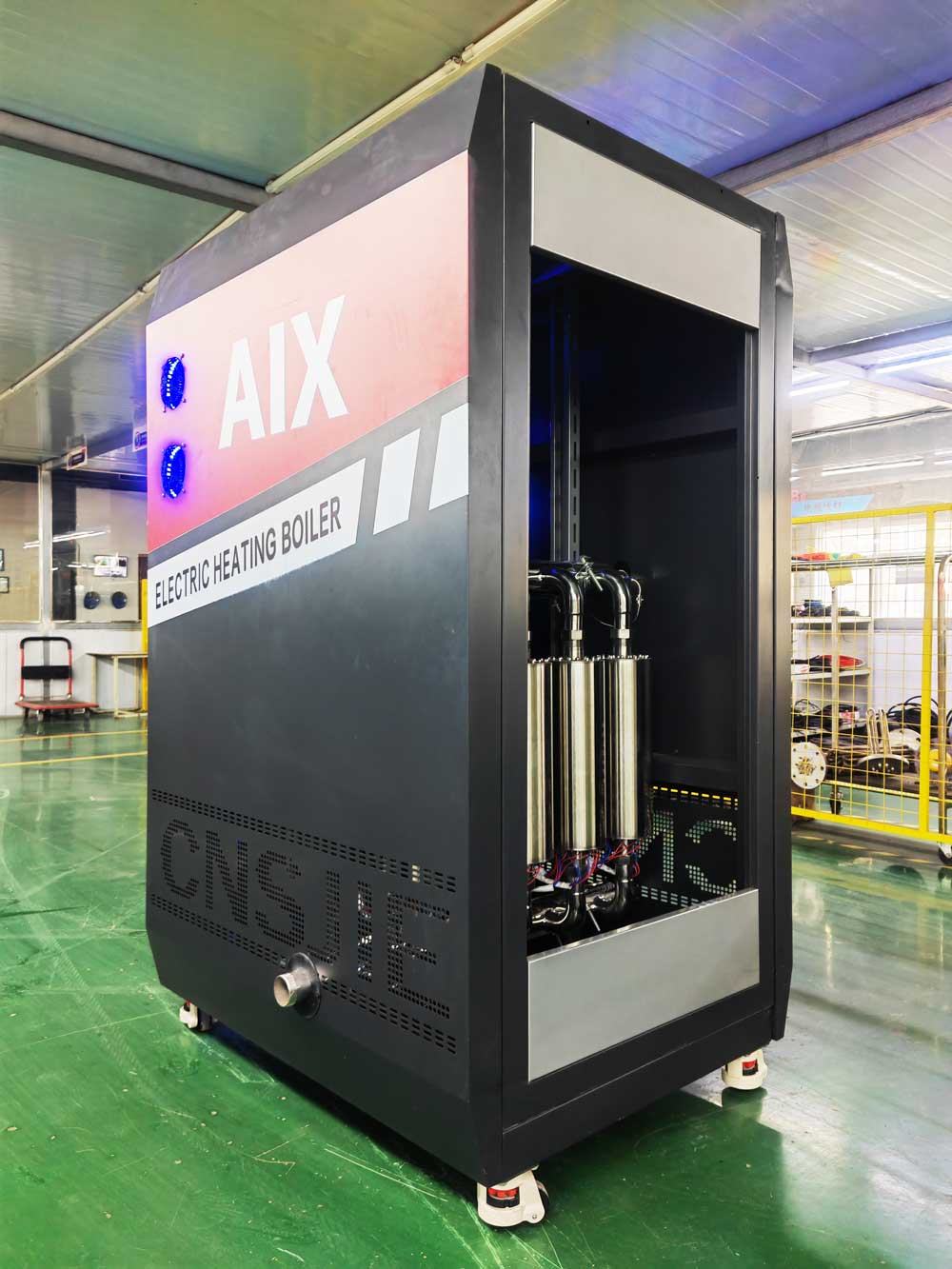

This PTC semiconductor electric boiler features a design that physically separates the water and electrical components. The heating unit employs a flow-through heating principle, utilizing ceramic heating elements that are tightly bonded to the exterior of the fluid conduit. Heat is transferred through the metal conduit wall; because the ceramic heating elements do not come into direct contact with the water, true separation of water and electricity is achieved. If the system runs dry or a thermostat failure leaves the heater without a load, the surface temperature of the heater rises to approximately 200°C, causing its electrical resistance to spike dramatically. At this point, the heating unit effectively becomes an insulator and cuts off the power supply, thereby protecting the entire circuit; virtually no current flows through the unit and no power is consumed, preventing burnout even during prolonged dry-firing. Heating resumes automatically once the temperature drops or water flow is restored within the conduit. Consequently, the heating unit can withstand extended periods of dry-firing without load, posing no risk of explosion, electric leakage, or fire.
