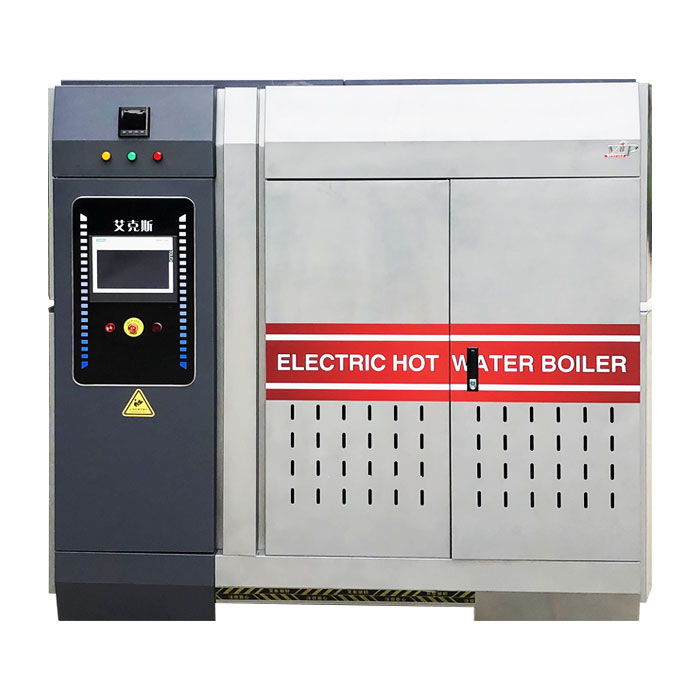

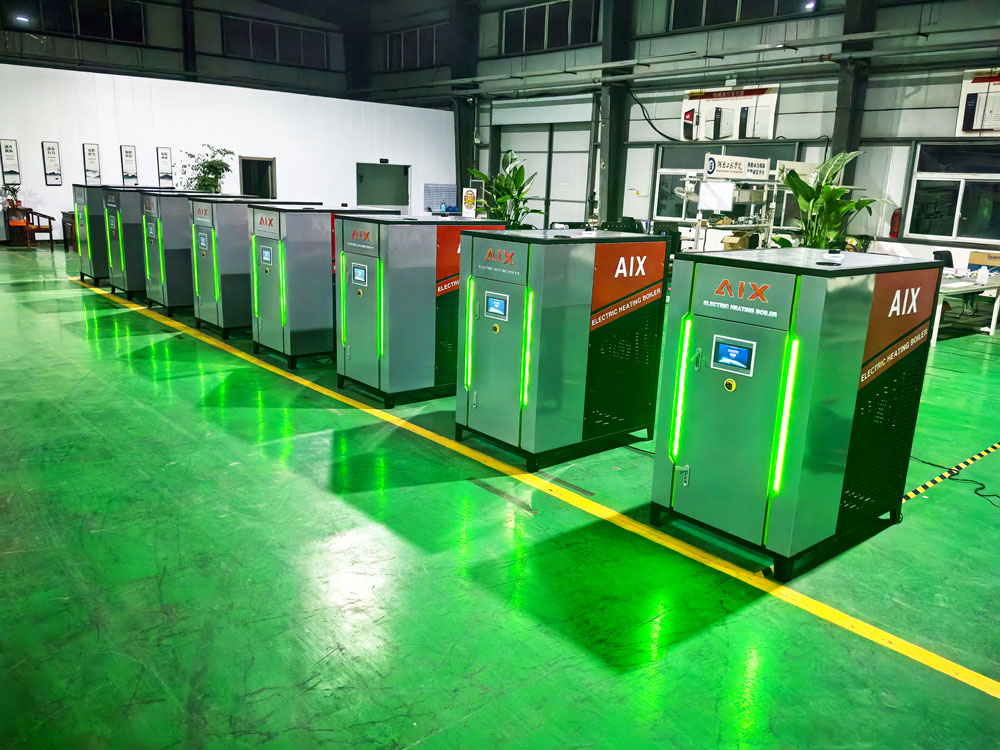

Electromagnetic hot water module boiler

1. Product Overview

DCRS electromagnetic hot water module boiler is a new type of high-temperature hot water boiler. It converts electric energy into thermal energy through electromagnetic induction principle to produce high-temperature hot water, featuring high efficiency, energy saving and environmental protection, which is a new generation of clean electric heating heat source equipment.

2. Working Principle

The boiler adopts electromagnetic induction heating technology: alternating current passes through electromagnetic coils to generate alternating magnetic fields, which induce eddy current inside the water cylinder. Water molecules rub at high speed to generate heat by themselves. Its thermal conversion efficiency reaches 96%~99%, and the steady thermal efficiency is above 97%.
Compared with traditional resistance electric heating boilers, it can save 15%-30% power under the same power condition, with faster heating speed, stable thermal performance, longer service life and convenient daily maintenance. It can replace traditional electric heat sources and realize the upgrading of electric heating systems in various industries.

3. Control System & Hardware Configuration

  1. Intelligent Control System
    Equipped with special AIX boiler controller and German Siemens control parts, matched with backlit LCD screen to display real-time operation data. Advanced frequency conversion intelligent management system supports stepless power regulation.
    Water temperature can be arbitrarily set within 30℃~90℃, supporting automatic constant temperature & timing supply for heating and hot water circulation system.
    High-power models adopt step-by-step time-sharing input control for heating modules. The heating groups can be activated or shut down according to load changes, greatly reducing impact on power grid.
  2. Heating Structure
    The metal cylinder is heated rapidly by induced eddy current from alternating magnetic field. Different from immersion electric heating tube boilers, it avoids scaling loss of external heating parts and achieves higher heat exchange efficiency.

4. Multi-dimensional Safety Protection

Complete interlock safety protection functions are integrated in the unit: leakage protection, anti-dry burning protection, furnace over-temperature protection, temperature sensor fault protection, abnormal power voltage protection and heating component phase failure protection. The boiler will shut down automatically under abnormal conditions to support unattended safe operation.

5. Core Advantages

  1. Excellent Energy-saving Performance: Heat efficiency up to 96%-99%, saving 15%~30% electricity vs resistance boilers, cutting long-term power cost significantly;
  2. Flexible Temperature Control: Adjustable temperature range from 30℃ to 90℃, automatic timing & constant temperature operation, stepless power regulation to match variable load;
  3. Grid-friendly Design: Stepwise startup of heating modules to prevent instantaneous high-power impact on power supply;
  4. Long Service Life & Low Maintenance Cost: No vulnerable electric heating tubes, fast heating and stable performance, easy inspection and cleaning;
  5. Comprehensive Safety Guarantee: 6 sets of independent interlock protection, automatic emergency shutdown to eliminate operation risks;
  6. Zero-emission Eco-friendly: Pure electric induction heating without combustion, flue gas or solid waste, widely applicable for drying room heating, central heating, industrial process heating and other low-carbon projects.
  7. 电加热承压热水模块锅炉 Electric heating pressurized hot water module boiler
    型号规格设计功率(kw/h)额定电流(A)适用电压(V)额定压力(Mpa)热水温度(℃)运输重量(kg)外形尺寸(mm)
    DCRS0.18180270380~5000.7/1.0115/7097700*700*1500
    DCRS0.24240360380~5000.7/1.0115/701601000*1200*1700
    DCRS0.35360540380~5000.7/1.0115/703401200*1000*1700
    DCRS0.48480720380~5000.7/1.0115/704301500*1500*1700
    DCRS0.58580870380~5000.7/1.0115/707801800*1700*1700
    DCRS0.77201080380~5000.7/1.0115/7017003000*1800*1700
    DCRS1.0510801620380~5000.7/1.0115/7022003600*2000*1750
    DCRS1.414402160380~5000.7/1.0115/7033803600*2100*1800
    DCRS1.7518002700380~5000.7/1.0115/7042004000*2200*1800
    DCRS2.121603240380~5000.7/1.0115/7072004500*2200*1800
