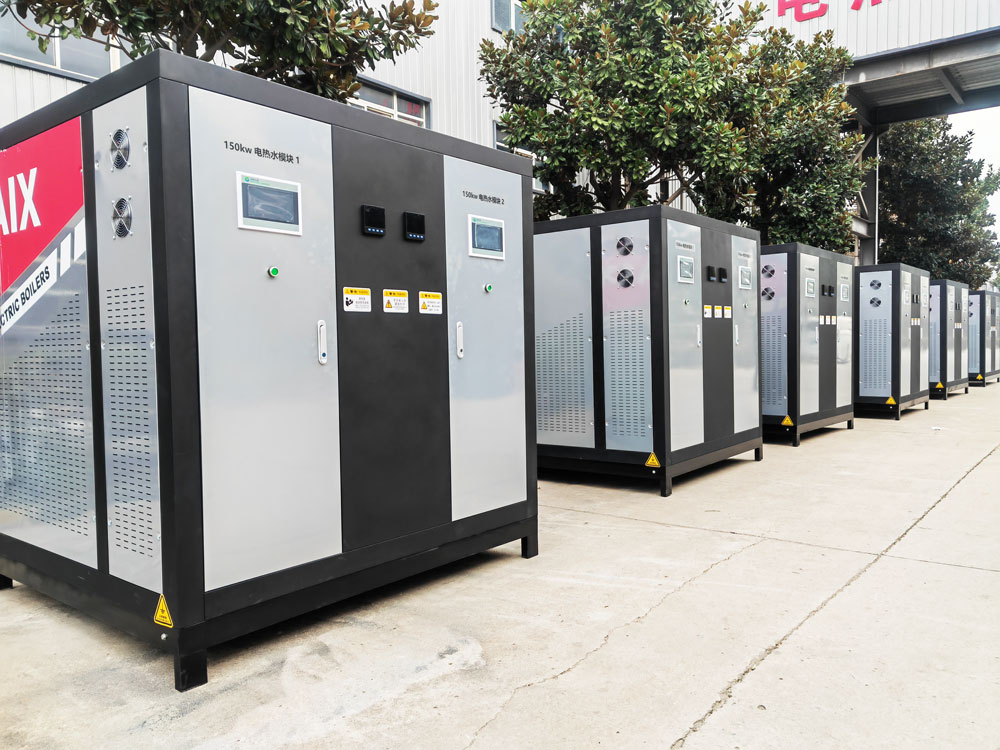

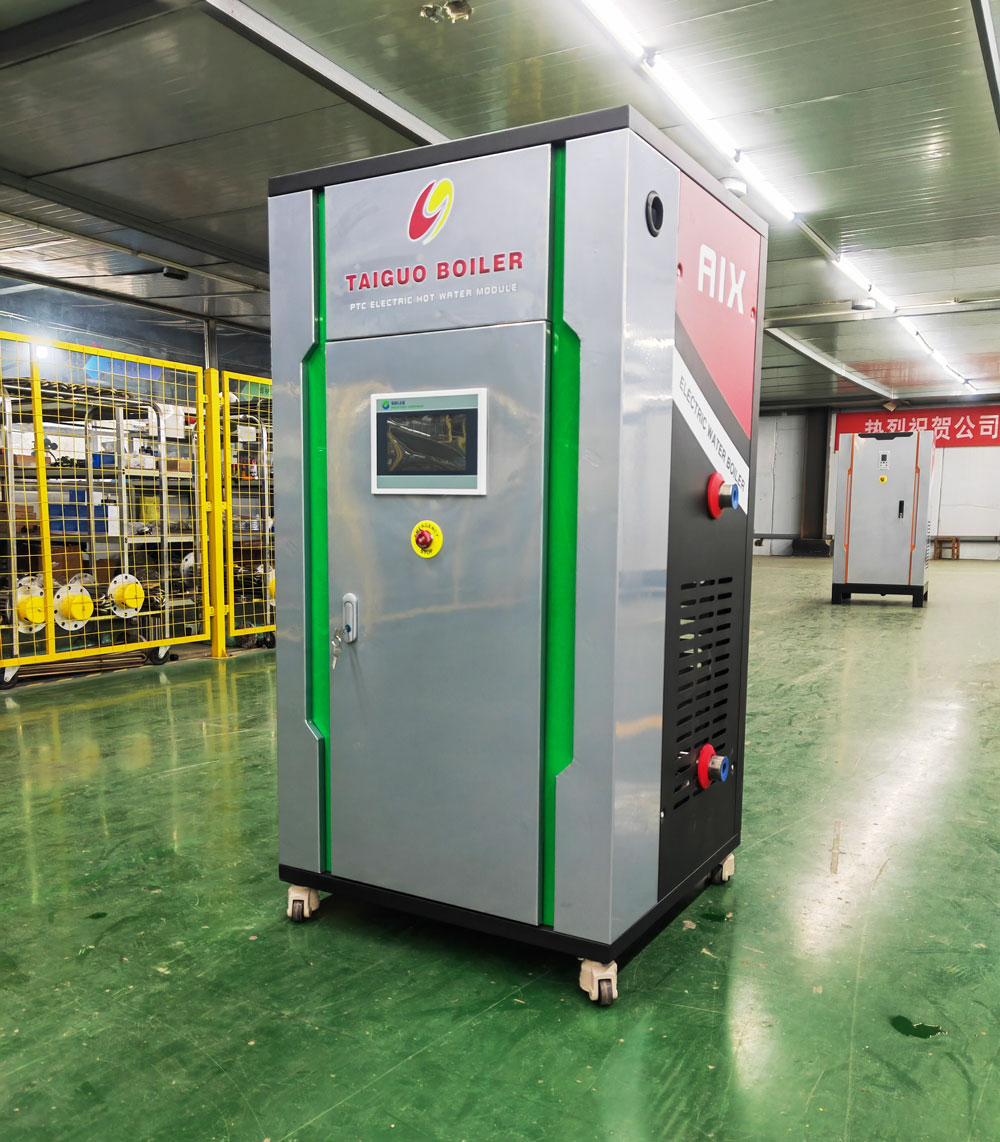

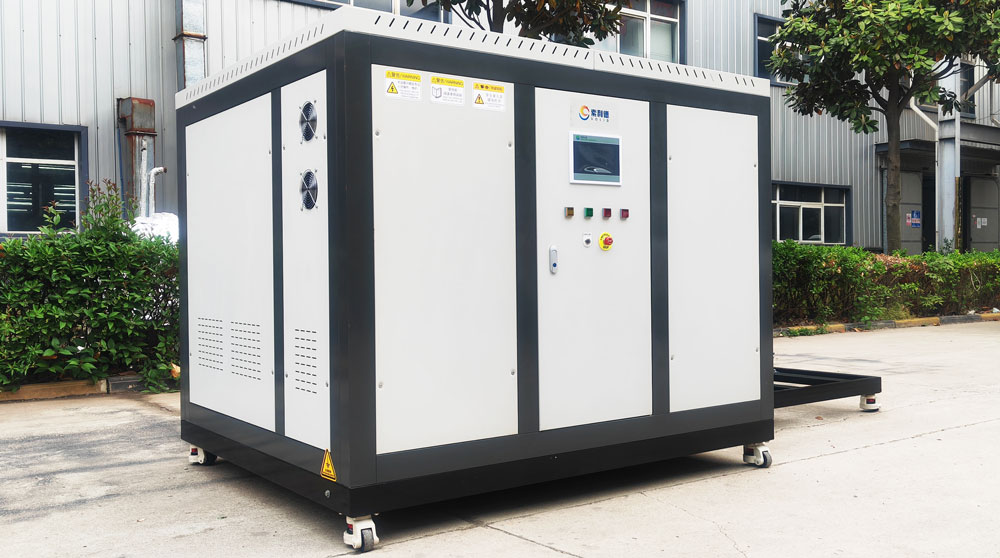

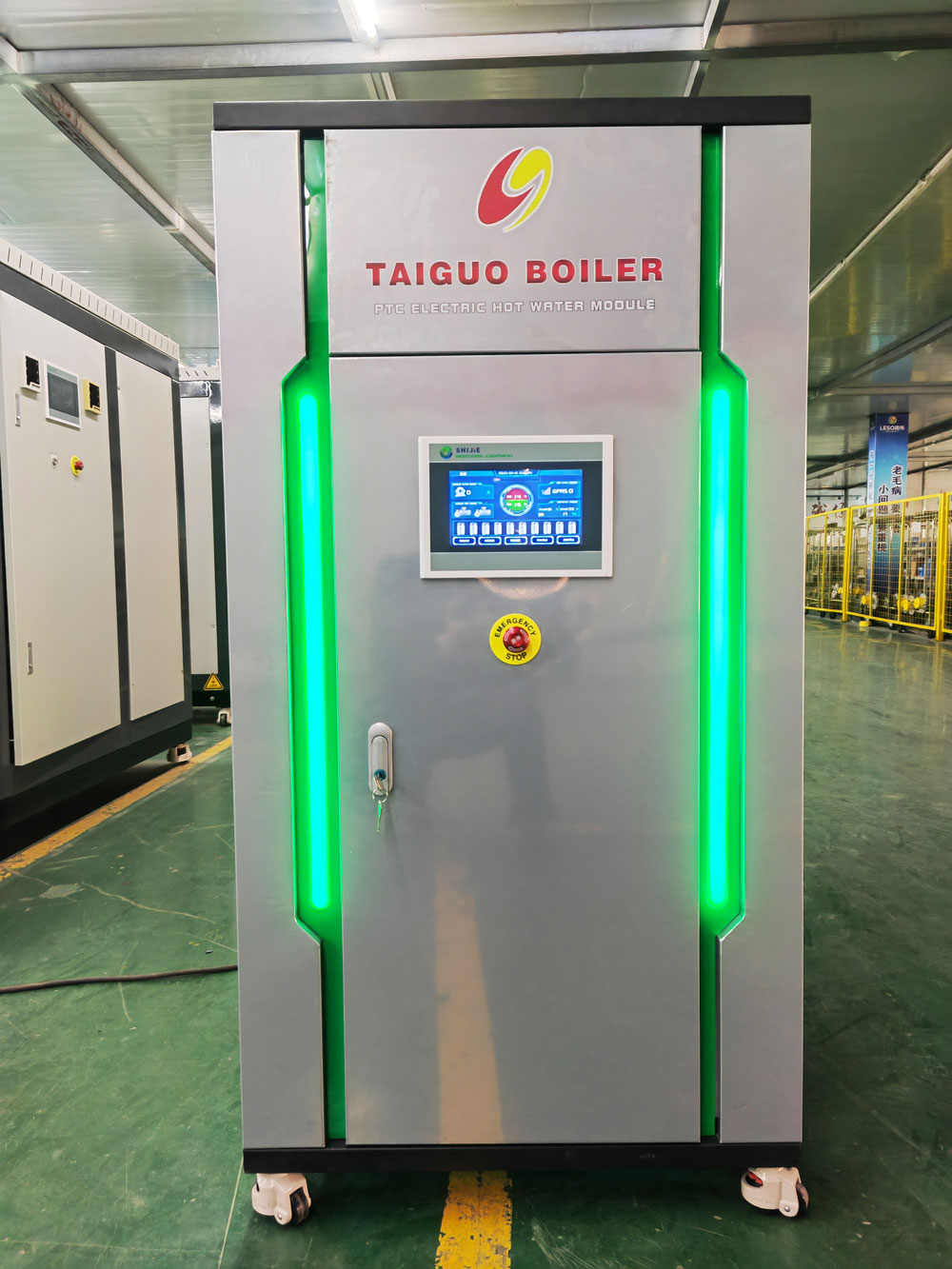

Electric heating hot water module boiler

电加热热水模块锅炉

Electric Heating Atmospheric Hot Water Module Boiler
Model Specifications	Design Power (kW)	Rated Current (A)	Design Voltage (V)	Rated Heat Generation (10⁴ kcal/h)	Hot Water Temperature (℃)	Transport Weight (kg)	External Dimensions (mm)
DZRS0.18	180	270	380~500	15	85/65	75	7007001500
DZRS0.24	240	360	380~500	20	85/65	120	100012001700
DZRS0.35	360	540	380~500	30	85/65	260	120010001700
DZRS0.48	480	720	380~500	40	85/65	330	150015001700
DZRS0.58	580	870	380~500	50	85/65	600	180017001700
DZRS0.7	720	1080	380~500	60	85/65	1300	300018001700
DZRS1.05	1080	1620	380~500	90	85/65	1700	360020001750
DZRS1.4	1440	2160	380~500	120	85/65	2600	360021001800
DZRS1.75	1800	2700	380~500	150	85/65	3200	400022001800
DZRS2.1	2160	3240	380~500	180	85/65	5500	450022001800

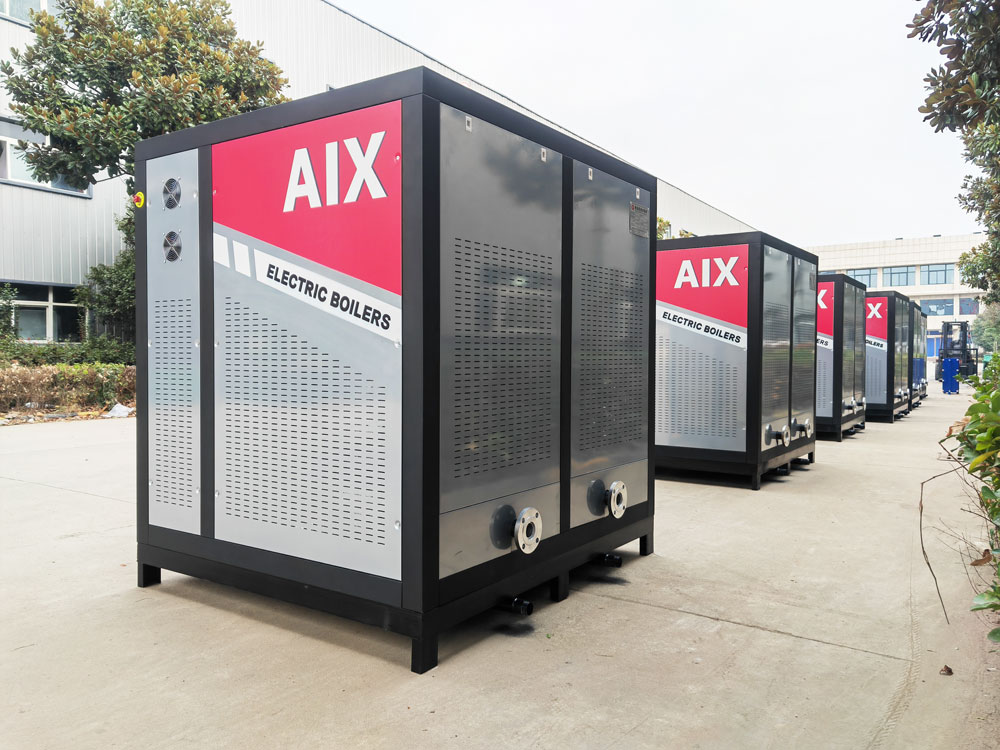

Electric Boiler
